Part Number # LPGR5S
SKU # 2466469
Brand: Appleton
LPGR5S
Appleton LPGR5S
Part Number # LPGR5S
SKU # 2466469
$229.84 / Each
Typical price:$406.35 / Each
Appleton LPGR5S Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | LPGR5S |
| SKU #: | 2466469 |
| Finish: | Baked Gray Epoxy Clad |
| Frequency Rating: | 50/60 Hz |
| Suitable For Use With: | Mercmaster III HID Luminaires |
| Temperature Rating (Degrees F): | -40 to 65 deg C |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39111827 |
| UPC: | 00078138160371 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$229.84 / Each
Typical price:$406.35 / Each
Quantity:
- Appleton, LPGR5S, Refractor, For Use With: Mercmaster III HID Luminaires, 120 to 277, 125 to 300 V AC/DC, 50/60 Hz Frequency, Copper Free Aluminum, Baked Gray Epoxy Clad, -40 to 65 deg C
LPGR5S Application
Awide range of industrial, chemical processing and other areas where flammable gases and vapors or combustible dusts may be present. Marine and wet locations. Suitability includes use where there may be simultaneous exposure to flammable gases and vapors or combustible dusts. Power plants. Processing plants. Chemical plants. Oil Refineries. Waste and sewage treatment. Hydrogen and Biofuels plants. LNG (Liquid Natural Gas) plants. Other areas where dust, water, dirt and rough usage are a problemLPGR5S Item Features
- Typical applications include pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages, and other areas where dust, water, dirt and rough usage are a problem
- Design is suited for low mounting heights, from 7 ft., up to 30 ft
- Choice of optics for optimal light distribution in a variety of applications: Type I, Type III, Type V or Type V Wide
- Modular design provides thousands of combinations for maximum versatility: four different globe options for the Standard version (three different globe options for the Emergency version) and seven standard mounting hoods
- Retrofit adapters for Crouse-Hinds Killark, and Mercmaster II hoods available
- Hinge has high lip for added safety during installation and servicing. Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing. Swing away design of captive bolt and nut simplifies installation
- Standard 6 kV surge protection with an option to upgrade to 10kV, heavy duty, high temperature silicone gaskets and a rugged housing with superior thermal design translates to long luminaire life
- Standard NPT threads with M20 option on Standard version
- Field replaceable globes and LED driver
LPGR5S Standards
UL Standard UL 844, UL 1598, UL 1598A, UL 50E, UL 8750, UL 60079-0, UL 60079-7, UL 60079-31|CSA Standard C22.2 No. 0 - 10, C22.2 No. 94.2 - 15, C22.2 No. 137 -M1981, C22.2 No. 250.0 - 08, C22.2 No. 250.13 -14, C22.2 No. 60529,C22.2 No. 60079-015, C22.2 No. 60079-716, C22.2 No. 60079-3115, CSA E60598-116|cCSAus 164460, Certificate Number 70112879SKU #2466469Part Number #LPGR5SUNSPSC39111827UPC00078138160371

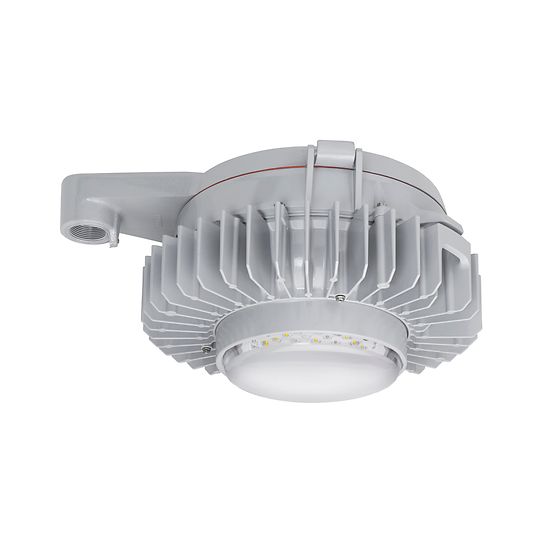

Image provided may only be a representation of final product and may include optional equipment
