HBL5362STBL
Hubbell HBL5362STBL
Part Number # HBL5362STBL
SKU # 2467540
$345.00 / 10Each
Typical price:$446.00 / Each
Hubbell HBL5362STBL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5362STBL |
| SKU #: | 2467540 |
| Amperage Rating: | 20 A |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screwless |
| Type: | Straight Blade |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585687674 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$345.00 / 10Each
Typical price:$446.00 / Each
Quantity:

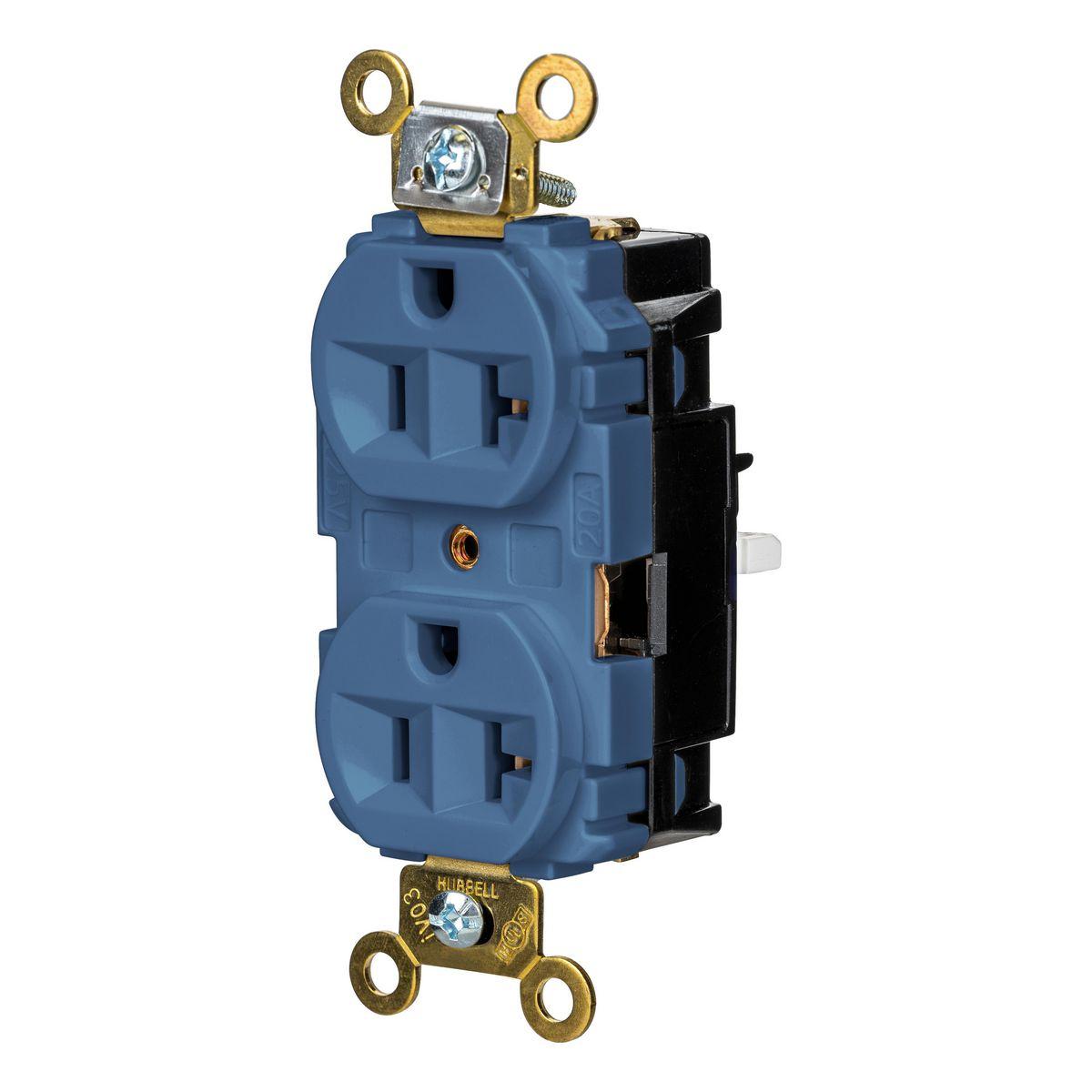

- Hubbell Wiring Device-Kellems, HBL5362STBL, Receptacle, Straight Blade, Series: EdgeConnect, 125 V, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screwless Terminal, Thermoplastic, Blue
HBL5362STBL Application
For Heavy Duty applicationHBL5362STBL Item Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
HBL5362STBL Standards
UL Listed to UL498 File No. E2186 Certified to CSA 22.2|No. 42 File 285 Fed. Spec. W-C-596|NEMA WD-6 CompliantSKU #2467540Part Number #HBL5362STBLUNSPSC39121406UPC00783585687674
Image provided may only be a representation of final product and may include optional equipment
