9080LBA365202L
Schneider Electric 9080LBA365202L
Part Number # 9080LBA365202L
SKU # 2467921
$238.14 / Each
Schneider Electric 9080LBA365202L Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9080LBA365202L |
| SKU #: | 2467921 |
| Amperage Rating: | 760 A Copper/620 A Aluminum |
| Dimensions: | 8.25 in H x 3.92 in W x 5.5 in D |
| Wire Size: | 6 AWG to 350 kcmil |
| UNSPSC: | 0 |
| UPC: | 03606487586463 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$238.14 / Each
Quantity:

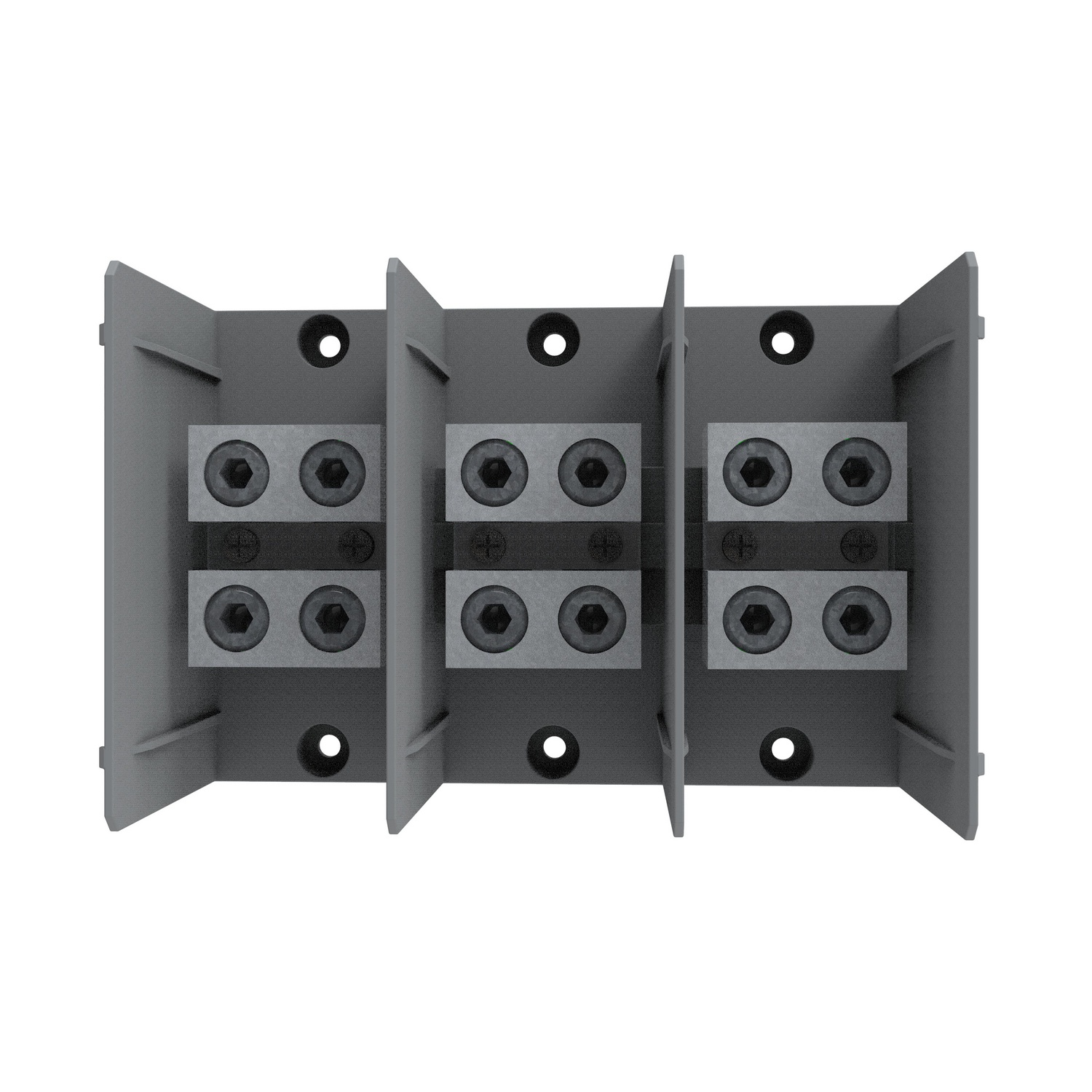

- Schneider Electric, 9080LBA365202L, Distribution Block, 600 V AC/DC, 760 A Copper/620 A Aluminum, 3 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, Thermoplastic, 8.25 in H x 3.92 in W x 5.5 in D Dimensions
9080LBA365202L Application
Ideal for distributing power to multiple loads9080LBA365202L Item Features
- This block is three pole and designed to NEMA standards
- Two lug opening on main side and two on branch side
- The housing is made of recyclable thermol plastic
9080LBA365202L Standards
CSA Certified|UL ListedSKU #2467921Part Number #9080LBA365202LUNSPSC0UPC03606487586463
Image provided may only be a representation of final product and may include optional equipment
