VH322BGL

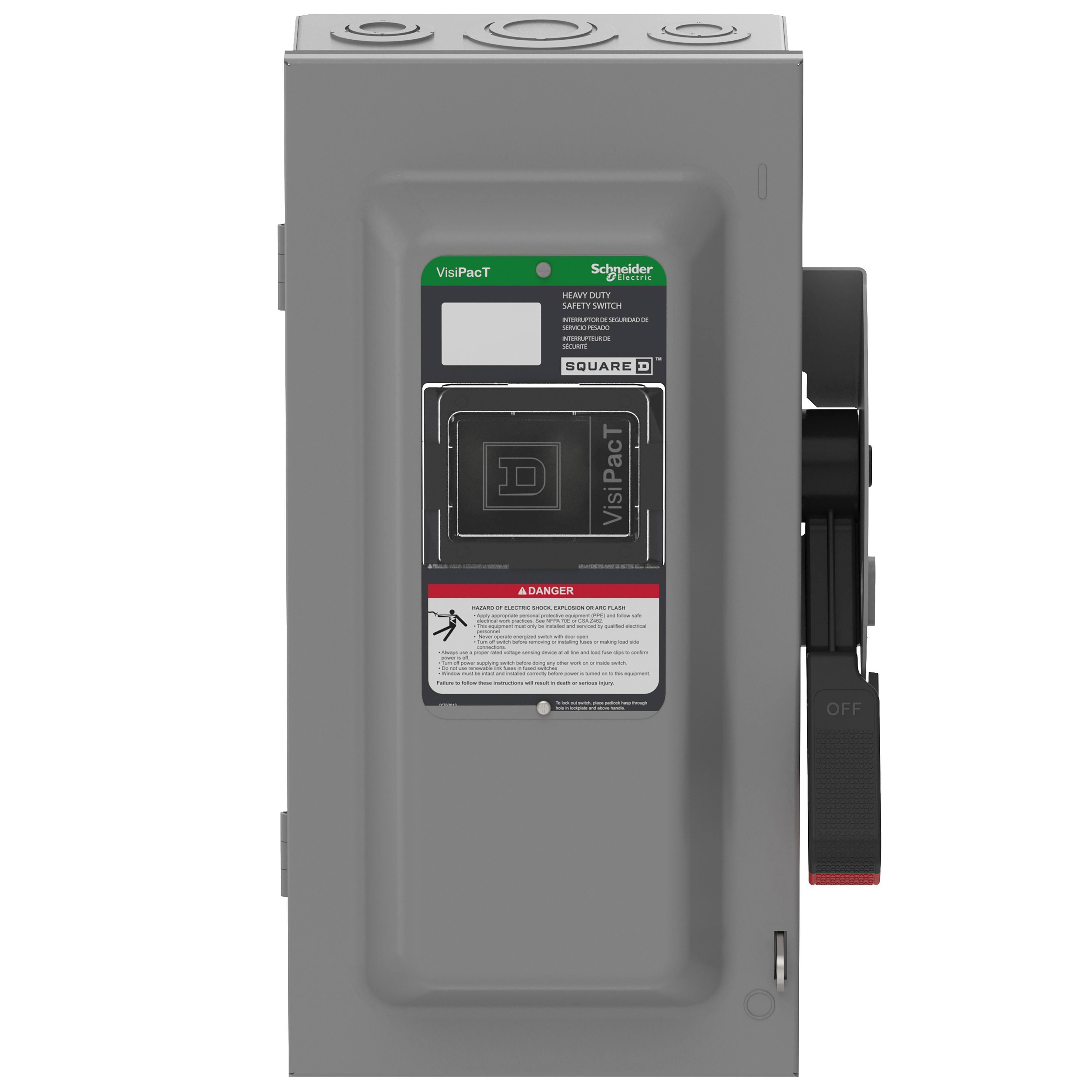

Square D VH322BGL
Part Number # VH322BGL
SKU # 2468185
$311.62 / Each
Typical price:$569.00 / Each
Square D VH322BGL Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | VH322BGL |
| SKU #: | 2468185 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Contact Form: | 3PST |
| Dimensions: | 5.00 in H x 6.36 in W x 5.11 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50 to 60 Hz |
| Horsepower: | 3, 7.5, 10, 15 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1, 3 |
| Short Circuit Current Rating (kA): | 10, 200 kA |
| Terminal Type: | Lug |
| Type: | Heavy Duty Fusible Disconnect |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 03606485893501 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.62 / Each
Typical price:$569.00 / Each
Quantity:
- Square D, VH322BGL, Safety Switch, Heavy Duty Fusible Disconnect, 240 V AC/250 V DC, 60 A, 3, 7.5, 10, 15 hp, 1, 3 ph, 50 to 60 Hz Frequency, 3 Pole, 4 Wires, 10, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, Class J Insulation, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 5.00 in H x 6.36 in W x 5.11 in D Dimensions, Steel
VH322BGL Application
Ideal for all your commercial and industrial needsVH322BGL Item Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Visipact safety switches come with a viewing window for quick visual verification of switch position
- QR code allow quick access to critical ratings and other useful product documentation
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
VH322BGL Standards
UL98/NEMA KS1 Standards|UL Files E2875/E154828SKU #2468185Part Number #VH322BGLUNSPSC39122205UPC03606485893501
Image provided may only be a representation of final product and may include optional equipment
