Brand: IDEAL
IDEAL 30-10L32
Part Number # 30-10L32
SKU # 2468592
Brand: IDEAL
30-10L32
IDEAL 30-10L32
Part Number # 30-10L32
SKU # 2468592
$580.50 / 1000Each
IDEAL 30-10L32 Key Features
| Brand: | IDEAL |
|---|---|
| Part Number # : | 30-10L32 |
| SKU #: | 2468592 |
| Dimensions: | 0.43 in H x 0.89 in W x 0.94 in D |
| Specifications: | 30 Amperage Rating, 0.47 to 0.55 in Strip Length |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | 2-Port |
| Wire Size: | 22 to 10, 12 to 10, 22 to 10 AWG |
| Wire Type: | Solid/Stranded/Tin-Bonded |
| Material: | Nylon/Polycarbonate |
| Manufacturer Name: | Ideal Industries |
| UNSPSC: | 0 |
| UPC: | 00783250707614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$580.50 / 1000Each
Quantity:

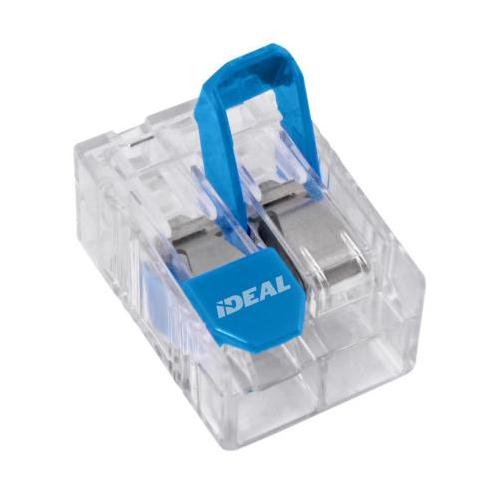

- IDEAL, 30-10L32, Wire Connector, 2-Port, Solid/Stranded/Tin-Bonded Wire, 22 to 10, 12 to 10, 22 to 10 AWG Wire, 600 V, Specifications: 30 Amperage Rating, 0.47 to 0.55 in Strip Length, 105 deg C, Nylon/Polycarbonate, Blue, 0.43 in H x 0.89 in W x 0.94 in D Dimensions
30-10L32 Item Features
- Modern alternative to traditional connectors
- Secure, reliable and reusable
- Clear housing allows verification of connection
- Continuity check port and strip length guide
30-10L32 Standards
cULus Listed|RoHS Compliant|CE Certified|UL 486C/467|IEC/EN 60998|UKCA Certified|UL 94V-2 Flammability RatingSKU #2468592Part Number #30-10L32UNSPSC0UPC00783250707614
Image provided may only be a representation of final product and may include optional equipment
