1208920000
Weidmuller 1208920000
Part Number # 1208920000
SKU # 2468734
$524.26 / 50Each
Typical price:$582.35 / Each
Weidmuller 1208920000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1208920000 |
| SKU #: | 2468734 |
| Amperage Rating: | 24 A |
| Dimensions: | 5.827 in H x 0.201 in W x 3.346 in D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | 2.5 sq-mm |
| Type: | 4-Tier |
| Wire Size: | 26 to 16 AWG |
| Connection type: | Screw |
| Country of origin: | CN |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248990320 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$524.26 / 50Each
Typical price:$582.35 / Each
Quantity:

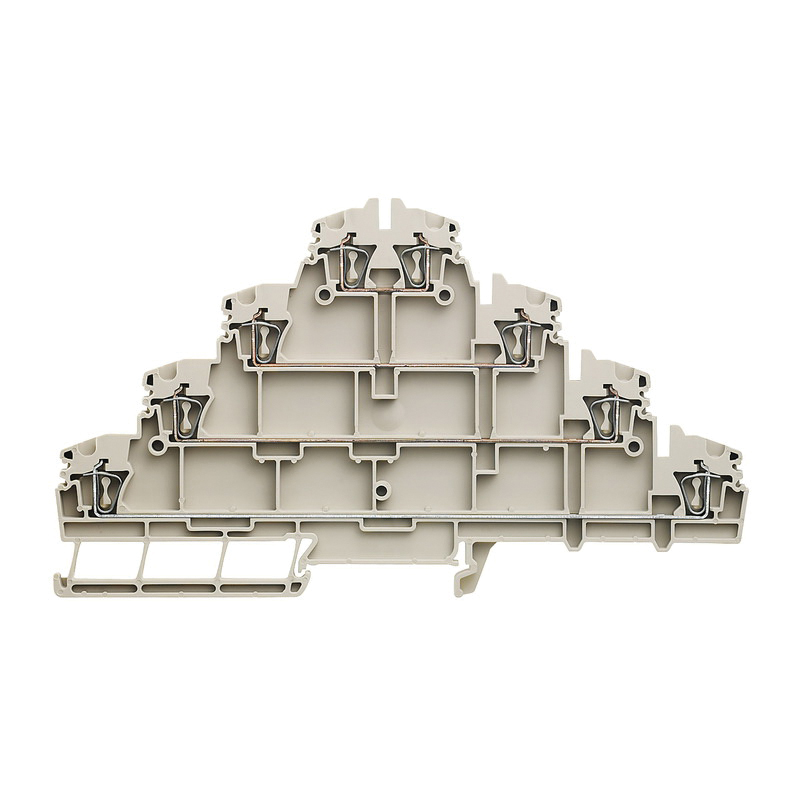

- Klippon Feed-Through Terminal Block, 4-Tier, Series: Z Series, 250 V AC, 24 A, 26 to 16 AWG Wire, 10 mm Wire Strip Length, 2.5 sq-mm Terminal, Snap-Fit Mount, Screw, -50 to 120 deg C, Wemid, Dark Beige, 5.827 in H x 0.201 in W x 3.346 in D
1208920000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 4 number of levels, 2 number of clamping points per level
- 0.6 x 3.5 mm blade
- 5.32 mOhm volume-resistance
- For plug-in cross-connector, one end without connector
- 6 kV rated impulse withstand voltage
- ZVLD 2.5 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1208920000 Standards
UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2468734Part Number #1208920000UNSPSC39121410UPC04032248990320
Image provided may only be a representation of final product and may include optional equipment
