MVE20201
Belden MVE20201
Part Number # MVE20201
SKU # 2468787
$19390.68 / 1460Feet
Typical price:$24044.74 / Feet
Belden MVE20201 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | MVE20201 |
| SKU #: | 2468787 |
| Conductor Size: | 2 AWG |
| Conductor Type: | Annealed Bare Copper |
| Jacket Material: | PVC Coated |
| Number of Conductors: | 1 |
| Outside Diameter: | 0.76 in |
| Strands: | 7 |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Shielded |
| Insulation material: | EPR |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19390.68 / 1460Feet
Typical price:$24044.74 / Feet
Quantity:
- Omni Cable Medium Voltage Power Cable, Shielded, 5 kV AC, 1 Conductor, Annealed Bare Copper Conductor, 2 AWG Conductor, 0.76 in OD, 7 Strands, EPR Insulation, PVC Coated Jacket, 105 deg C
MVE20201 Application
For use in wet or dry locations, aerial, direct burial, conduit, open tray and underground duct installationsMVE20201 Item Features
- Extruded thermoset semi-conducting stress control layer over conductor
- EPR, colored to contrast with the black conducting shield layers insulation
- Thermoset semi-conducting polymeric layer free stripping from insulation shield
- 5 mils annealed copper tape with an overlap of 25% metallic shield
- Flame-retardant, moisture and sunlight-resistant polyvinyl chloride jacket
- Sizes 1/0 AWG and larger are listed and marked "Sunlight-Resistant for CT Use" in accordance with the NEC
- 140 deg C emergency, 250 deg C short circuit temperature
- https://www.youtube.com/watch?v=bKD2UEGvW48
MVE20201 Standards
National Electric Code (NEC)|UL File No 1072/1685 Listed|IEEE 1202|OSHA CompliantSKU #2468787Part Number #MVE20201UNSPSC0UPC

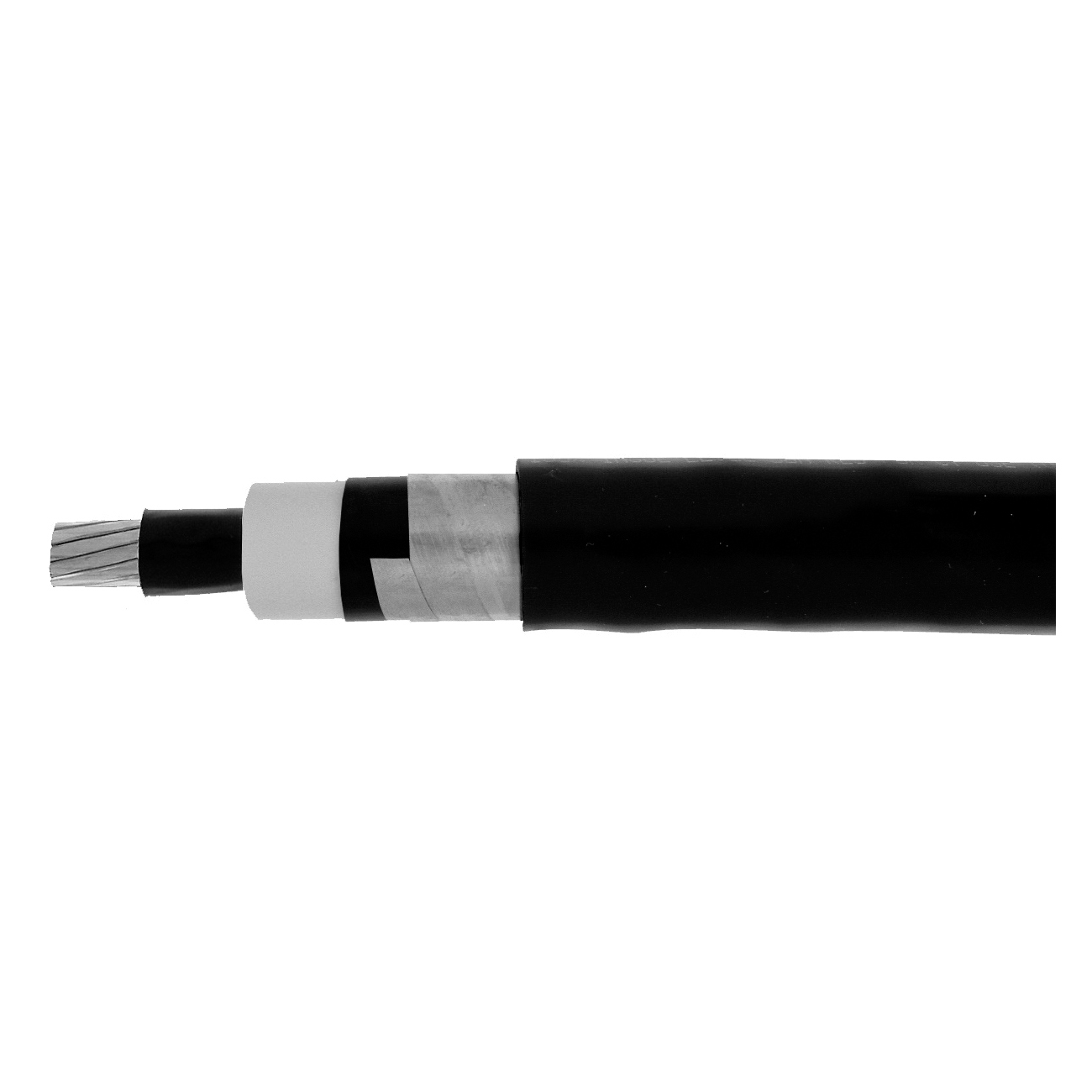

Image provided may only be a representation of final product and may include optional equipment
