Intermatic ELC4236 Key Features
| Brand: | Intermatic |
|---|---|
| Part Number # : | ELC4236 |
| SKU #: | 2469592 |
| Amperage Rating: | 2 A |
| Contact Form: | SPST |
| Dimensions: | 5.625 in H x 1.3 in W x 1.25 in D |
| Environmental Conditions: | -40 to 158 deg F Operating Temperature |
| Series: | ELC |
| Timing Range: | 15 sec to 30 sec ON, 2 sec to 5 sec OFF |
| Type: | Electronic |
| Mounting type: | Box/Fixture |
| Sensitivity: | 1 to 5 fc Turn On/3 to 15 fc Turn Off |
| Manufacturer Name: | Intermatic |
| UNSPSC: | 39121524 |
| UPC: | 00078275159952 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.51 / Each
Quantity:
- Intermatic, ELC4236, Photocontrol, Electronic, Series: ELC, 120 to 277 V AC, 2 A, 50/60 Hz Frequency, 430 to 1000 W Tungsten, 1800 VA Ballast, SPST Contact Form, 15 sec to 30 sec ON, 2 sec to 5 sec OFF Timing, 18 AWG Wire, 1 to 5 FC Turn On/3 to 15 FC Turn Off Sensitivity, Environmental Conditions: -40 to 158 deg F Operating Temperature, Box/Fixture Mounting, Polycarbonate, Black, 5.625 in H x 1.3 in W x 1.25 in D Dimensions
ELC4236 Application
Outdoor Lighting ControlELC4236 Item Features
- Phototransistor Light Sensor with Relay Switch
- Dusk to Dawn Operation
- Delay feature prevents unwanted switching
- 10-year design life
- Exceeds 3,650 ON/OFF switching cycles
- 1/2 in-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 in diameter
ELC4236 Standards
cULus/Title CA 20|RoHS CompliantSKU #2469592Part Number #ELC4236UNSPSC39121524UPC00078275159952

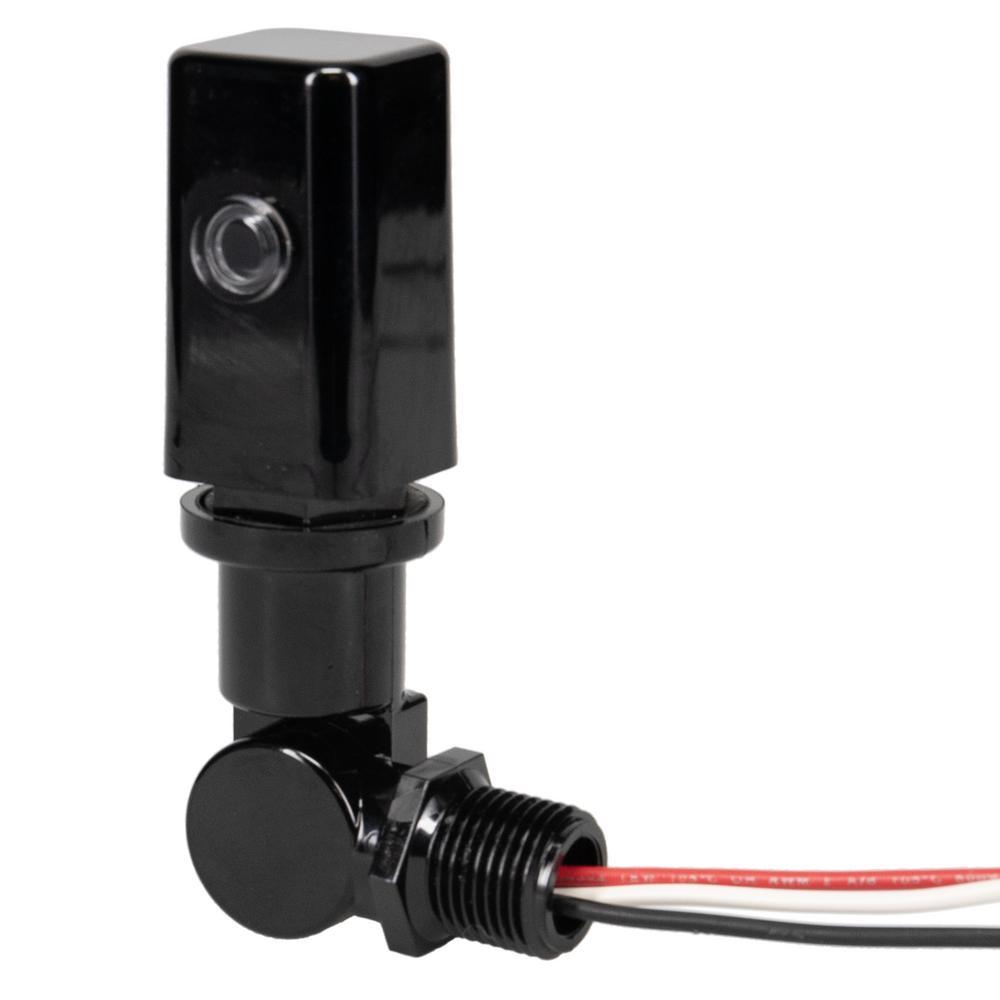

Image provided may only be a representation of final product and may include optional equipment
