Appleton Areamaster HL IAMLHL2CG7BH Generation 2 High Lumen Rectangular Floodlight Luminaire, LED Lamp, 219 W Fixture, 347 to 480 V AC, Architectural Bronze Polyester Housing
Part Number # IAMLHL2CG7BH
SKU # 2469749
IAMLHL2CG7BH
Appleton Areamaster HL IAMLHL2CG7BH Generation 2 High Lumen Rectangular Floodlight Luminaire, LED Lamp, 219 W Fixture, 347 to 480 V AC, Architectural Bronze Polyester Housing
Part Number # IAMLHL2CG7BH
SKU # 2469749
$2294.13
Typical price:$4056.03 /
IAMLHL2CG7BH Key Features
| Part Number # : | IAMLHL2CG7BH |
|---|---|
| SKU #: | 2469749 |
| Amperage Rating: | 0.47/0.64 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 18.67 in H x 15.94 in W x 5.13 in D |
| Enclosure Type: | NEMA 3R/4/4X/IP66/IP67 |
| Fixture Wattage: | 219 W |
| Housing Finish: | Architectural Bronze Polyester |
| Lamp Type: | LED |
| Lamp Wattage: | 225 W |
| Lens Type: | Clear Glass |
| Light Color: | Cool White |
| Light Output: | 124 Lumens/W |
| Lumens: | 28100 Lumens |
| Series: | IAMLH |
| Type: | Generation 2 High Lumen Rectangular |
| Country of origin: | MX |
| Housing material: | Copper-Free Aluminum |
| Mounting type: | Yoke |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 781381100304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2294.13
Typical price:$4056.03 /
Quantity:
- Appleton Areamaster HL Floodlight Luminaire, Generation 2 High Lumen Rectangular, Series: IAMLH, 347 to 480 V AC, 219 W Fixture, 0.47/0.64 A, LED Lamp, 225 W Lamp, 124 Lumens/W, 60000 hr Average Life, Cool White Light, 5000 K Color, 70 CRI, Clear Glass Lens, 28100 Lumens, NEMA 3R/4/4X/IP66/IP67, Yoke Mount, Copper-Free Aluminum Housing, Architectural Bronze Polyester Housing, 18.67 in H x 15.94 in W x 5.13 in D
IAMLHL2CG7BH Application
Flood, Security Lighting, Production Facilities, Warehouses, Processing Plants, Storage Areas, Parking Garages, Lots, Industrial Applications and Ordinary, Wet LocationsIAMLHL2CG7BH Item Features
- Three lumen outputs provide up to 38000 Lumens with a choice of optics for optimal light distribution
- Separate field wiring compartment with screw terminal block for easy and secure connection (can accept UL/CSA 26 to 10 AWG)
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners
- Yoke bracket is designed to accommodate traditional Areamaster brackets and slipfitters for easy retrofit
- (2) 3/4 in NPT entries provided
- 219 W at 347/480 VAC
- 0.64 A at 347 VAC, 0.47 A at 480 VAC
IAMLHL2CG7BH Standards
RoHS Compliant|NEC Certified|CEC Certified|UL 1598|UL 1598A|UL 8750|CSA C22.2 No. 250.0|cCSAus 164460 File No. 70073608SKU #2469749Part Number #IAMLHL2CG7BHUNSPSC39112102UPC781381100304

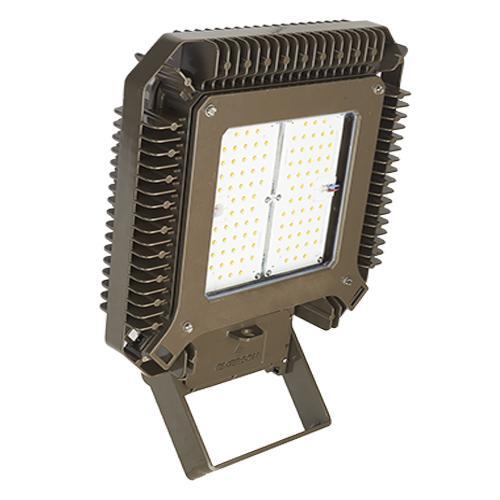

Image provided may only be a representation of final product and may include optional equipment
