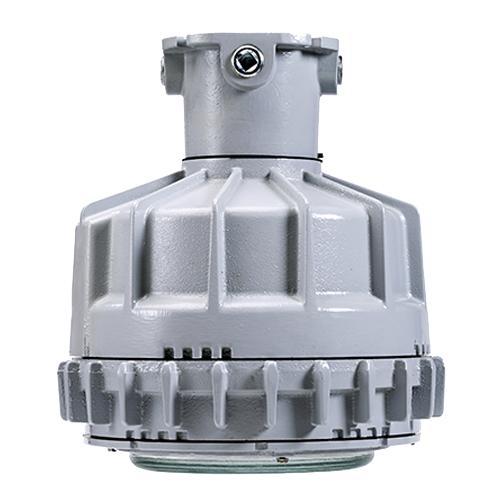

Appleton Code Master CMLEDC252G5BUGC Cylindrical Dust-Ignitionproof Factory Sealed Explosionproof Luminaire With Safety Cable and Lens Guard, LED Lamp, 95.5/92 W Fixture, 120 to 277 V AC, Painted Gray Baked Epoxy Clad Housing
Part Number # CMLEDC252G5BUGC
SKU # 2469867
CMLEDC252G5BUGC
Appleton Code Master CMLEDC252G5BUGC Cylindrical Dust-Ignitionproof Factory Sealed Explosionproof Luminaire With Safety Cable and Lens Guard, LED Lamp, 95.5/92 W Fixture, 120 to 277 V AC, Painted Gray Baked Epoxy Clad Housing
Part Number # CMLEDC252G5BUGC
SKU # 2469867
$3033.86
Typical price:$4876.25 /
CMLEDC252G5BUGC Key Features
| Part Number # : | CMLEDC252G5BUGC |
|---|---|
| SKU #: | 2469867 |
| Amperage Rating: | 0.9/0.36 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 14.3 in L x 13 in W |
| Enclosure Type: | NEMA 3R/4X/5/IP66/IP67 |
| Fixture Wattage: | 95.5/92 W |
| Housing Finish: | Painted Gray Baked Epoxy Clad |
| Lamp Type: | LED |
| Lens Type: | Polycarbonate |
| Lumens: | 8982 Lumens |
| Series: | CMLED |
| Type: | Cylindrical Dust-Ignitionproof Factory Sealed |
| Country of origin: | MX |
| Housing material: | Cast Copper Free Aluminum |
| Mounting type: | Ceiling |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 781381410281 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3033.86
Typical price:$4876.25 /
Quantity:
- Appleton Code Master Explosionproof Luminaire, Cylindrical Dust-Ignitionproof Factory Sealed, Series: CMLED, 120 to 277 V AC, 95.5/92 W Fixture, 0.9/0.36 A, LED Lamp, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Lens, 8982 Lumens, NEMA 3R/4X/5/IP66/IP67 Enclosure, Ceiling Mounting, Cast Copper Free Aluminum Housing Material, Painted Gray Baked Epoxy Clad Housing Finish, 14.3 in L x 13 in W Dimensions
CMLEDC252G5BUGC Application
Chemical, Oil, Gas, Petrochemical, Pulp and Paper, Foundries, Manufacturing, Waste and Sewage Treatment, Pharmaceutical, Mining, Power Generation and General Purpose LightingCMLEDC252G5BUGC Item Features
- 60000 hr rated life eliminates the need for frequent relamping
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- All threaded joints are flame-tight
- Fixture housing and mounting hoods are copper free cast aluminum with baked epoxy finish, all exposed hardware is stainless steel
- Aluminum body utilizes the same Code Master HID mounting hoods and is an easy retrofit for existing Code Master HID installations, can be pendant, ceiling, wall or stanchion mounted
- ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads
- The threads do not stick or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal
- Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
- External seals are not required
- Lens, driver and LED array are all field replaceable
CMLEDC252G5BUGC Standards
UL 50/50E/844/1598/1598A/8750|CAN/CSA-C22.2 No. 94.1-07 (R2012)|CAN/CSA-C22.2 No. 94.2-07 (R2012)|CAN/CSA-C22.2 No. 137- M1981 (R2009)|CAN/CSA-C22.2 No. 250.0-08 (R2013)|CAN/CSA-C22.2 No. 250.13|CAN/CSA-C22.2 No. 60529-05 (R2010) Certified|ANSI/IEC 60529|cCSAus 70030675|NEC/CEC Class I, Division 1 and 2, Groups B, C, D Class I, Zone 1 Group IIB + H2 Class II, Division 1, Group E, F, G Class II, Division 2, Group F, G Class IIISKU #2469867Part Number #CMLEDC252G5BUGCUNSPSC39112102UPC781381410281
Image provided may only be a representation of final product and may include optional equipment
