Part Number # 140ACO02000
SKU # 27445
140ACO02000
Schneider Electric 140ACO02000
Part Number # 140ACO02000
SKU # 27445
$4376.87 / Each
Schneider Electric 140ACO02000 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 140ACO02000 |
| SKU #: | 27445 |
| Amperage Rating: | 4 to 20 mA |
| UNSPSC: | 32151705 |
| UPC: | 00785901792192 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4376.87 / Each
Quantity:
Schneider Electric 140ACO02000
Brand: Schneider Electric
Part Number: 140ACO02000
Additional Description: SQD -140ACO02000 (O) AN OUT 4CH CURR NON-CANCELABLE, NON-RETURNABLE
140ACO02000 Application
Modicon Quantum Automation Platform Applications140ACO02000 Item Features
- 4 output words addressing requirement
- 12 to 30 VDC loop voltage
- 7 to 30 V 20 mA voltage drop
- 4 to 20 mA 0 to 4096 counts, 12 bits bipolar current analog output range
- +/-0.2% of full scale at 25 deg C absolute accuracy error
- +/-1 LSB linearity
- +/-0.004% of full scale/deg C, +/-0.007% of full scale/deg C maximum accuracy drift according to temperature
- 500 VAC 47 to 63 Hz, 750 VDC for 1 min isolation between channel
- 3 ms update time
- 900 us to +/-0.1% of the final value setting time
- Open circuit 4 to 20 mA fault type
- 480 mA bus current requirement
- <=5.3 W power dissipation
- 12 to 30 V external power requirement
- Standard module format
- 10 V/m 80 to 1000 MHz conforming to IEC 801-3-resistance to electromagnetic field
- -40 to 85 deg C ambient air temperature for storage
- 95% without condensation relative humidity
- <=5000 m operating altitude
- 4 LED green channel is turned on, 4 LED red channel fault, 1 LED green bus communication is present (active), 1 LED red external fault
140ACO02000 Standards
CE Certified|CSA C22.2 File No. 142|cUL Listed|FM Class 1 Division 2|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL 508SKU #27445Part Number #140ACO02000UNSPSC32151705UPC00785901792192

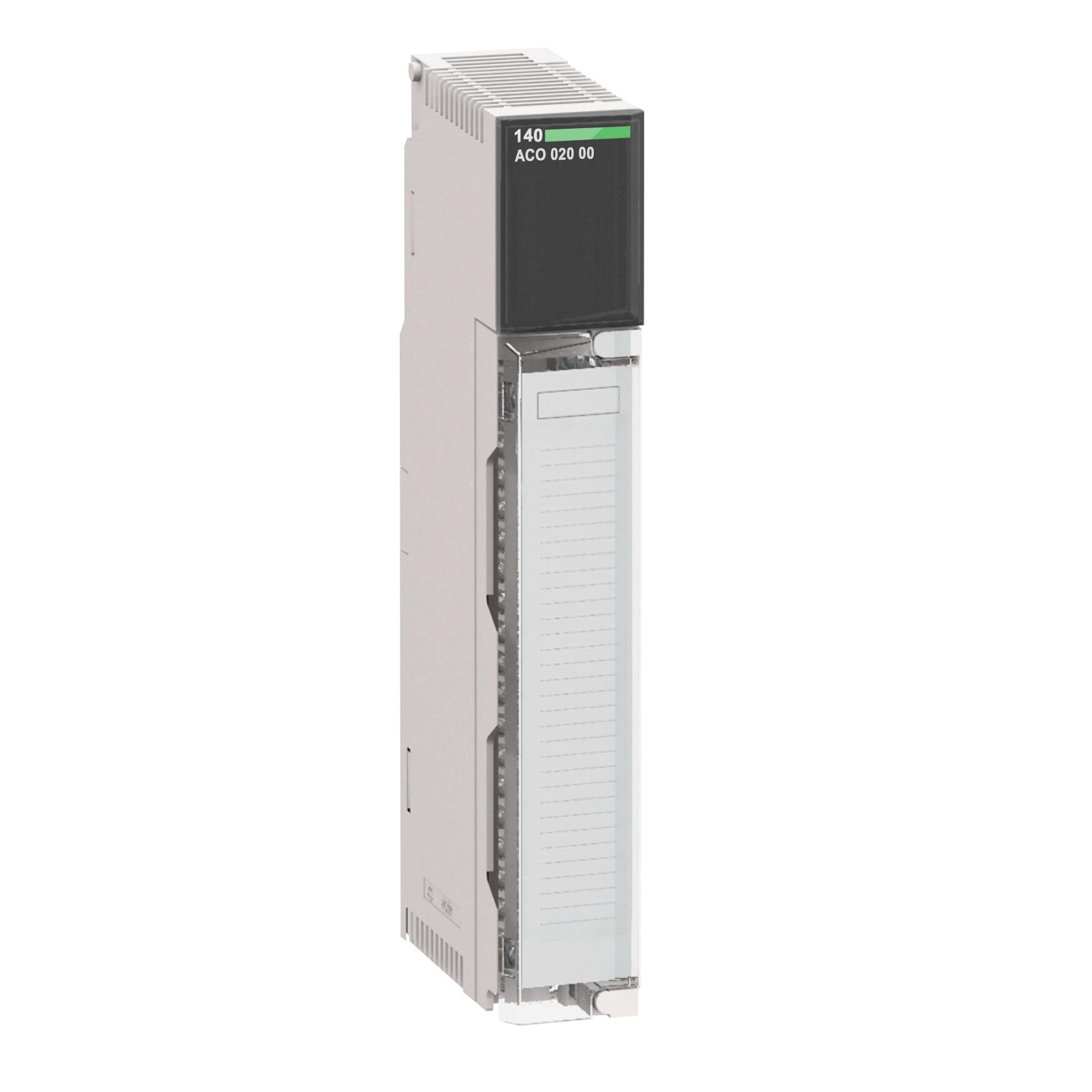

Image provided may only be a representation of final product and may include optional equipment
