Part Number # TA110DU110
SKU # 302588
Image Disclaimers Message

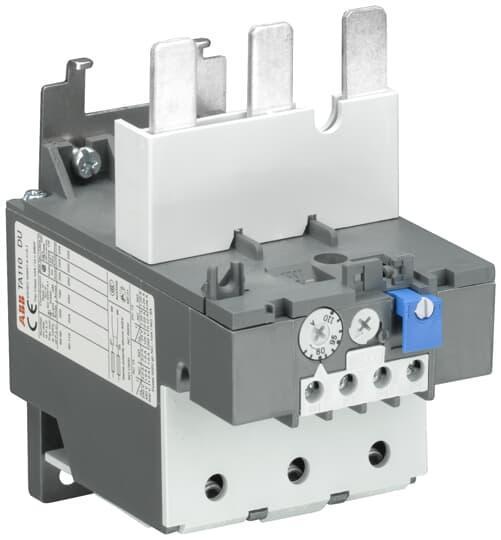

ABB TA110DU110 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TA110DU110 |
| SKU #: | 302588 |
| Amperage Rating: | 80 to 110, 80 to 110 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 V AC, 3 A at 120 VAC |
| Dimensions: | 80 mm W x 120 mm D x 120 mm H |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TA110DU |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | CZ |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614216800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- ABB Thermal Overload Relay, Economic, Series: TA110DU, 80 to 110 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 A at 120 V AC Contact, 3 Pole, Screw Terminal, IP10/IP20 Enclosure, -25 to 55 deg C, 80 mm W x 120 mm D x 120 mm H Dimensions
TA110DU110 Application
For A95/A110/AE95/AE110 contactorTA110DU110 Item Features
- Manual or automatic reset selectable
- Phase loss sensitivity acceleration to IEC/EN 60947-4-1
- TEST and STOP function - trip indication on the front
- Temperature compensation
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
TA110DU110 Standards
ABS Certified|BV Certified|CB Certified|CE Certified|CCC Certified|cUL Listed|DNV GL Certified|EAC Certified|GL Certified|GOST Certified|LR Certified|RMRS Certified|RoHS Compliant|UL ListedSKU #302588Part Number #TA110DU110UNSPSC39122330UPC04013614216800
