Part Number # 553380240000
SKU # 338753
Image Disclaimers Message
Brand: Finder
553380240000

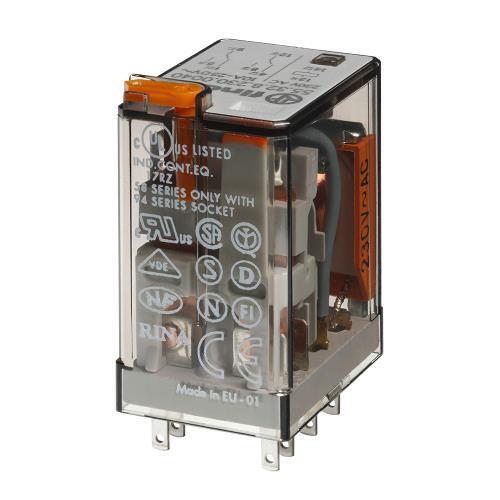

Finder 553380240000
Part Number # 553380240000
SKU # 338753
$8.04 / Each
Typical price:$11.69 / Each
Finder 553380240000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 553380240000 |
| SKU #: | 338753 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Form: | 3CO 3 Form C 3PDT, 3CO/3PDT |
| Dimensions: | 27.7 mm W x 20.7 mm D |
| Enclosure Type: | RTI |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 55 Series |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Push-In/Screw/Screwless |
| Type: | Standard |
| Mounting type: | Plug-In |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122326 |
| UPC: | 08012823248622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.04 / Each
Typical price:$11.69 / Each
Quantity:
- Finder General Purpose Relay, Standard, Series: 55 Series, 10 A, 1.5 VA Power, 50/60 Hz Frequency, 24 V AC Coil, 3CO 3 Form C 3PDT Contact Form, 3 Poles, Plug-In Mounting, Push-In/Screw/Screwless Terminal, RTI Enclosure, -40 to 85 deg C, 27.7 mm W x 20.7 mm D Dimensions
553380240000 Application
Industrial, Blind, Grille and Shutter Automation, Control and Management of Electric Power, Shipyard, Road, Tunnel Lighting, Hoist, Crane, Circuit Breaker, Switch, Control Panel and Electrical Distribution Panel Applications553380240000 Item Features
- AC/DC coils
- Variant with LED and integrated protection circuit
- For use with 94 series socket for printed circuit board, solder or for 35 mm rail mount (EN 60715) with push-in, screw or screwless terminal
- Cadmium-free contact material
- European patent
- Standard AgNi contact
553380240000 Standards
ANCE Standard|CCC Certified|CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EC Certified|EN 60715|ENEC 03|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL Listed|VDE ApprovedSKU #338753Part Number #553380240000UNSPSC39122326UPC08012823248622
