Part Number # 1SNA199034R1500
SKU # 340446
Brand: TE Connectivity
1SNA199034R1500
TE Connectivity 1SNA199034R1500
Part Number # 1SNA199034R1500
SKU # 340446
TE Connectivity 1SNA199034R1500 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA199034R1500 |
| SKU #: | 340446 |
| Dimensions: | 45 mm H x 6 mm W x 41 mm D |
| UNSPSC: | 39121410 |
| UPC: | 00662019964546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA199034R1500
Brand: TE Connectivity
Part Number: 1SNA199034R1500

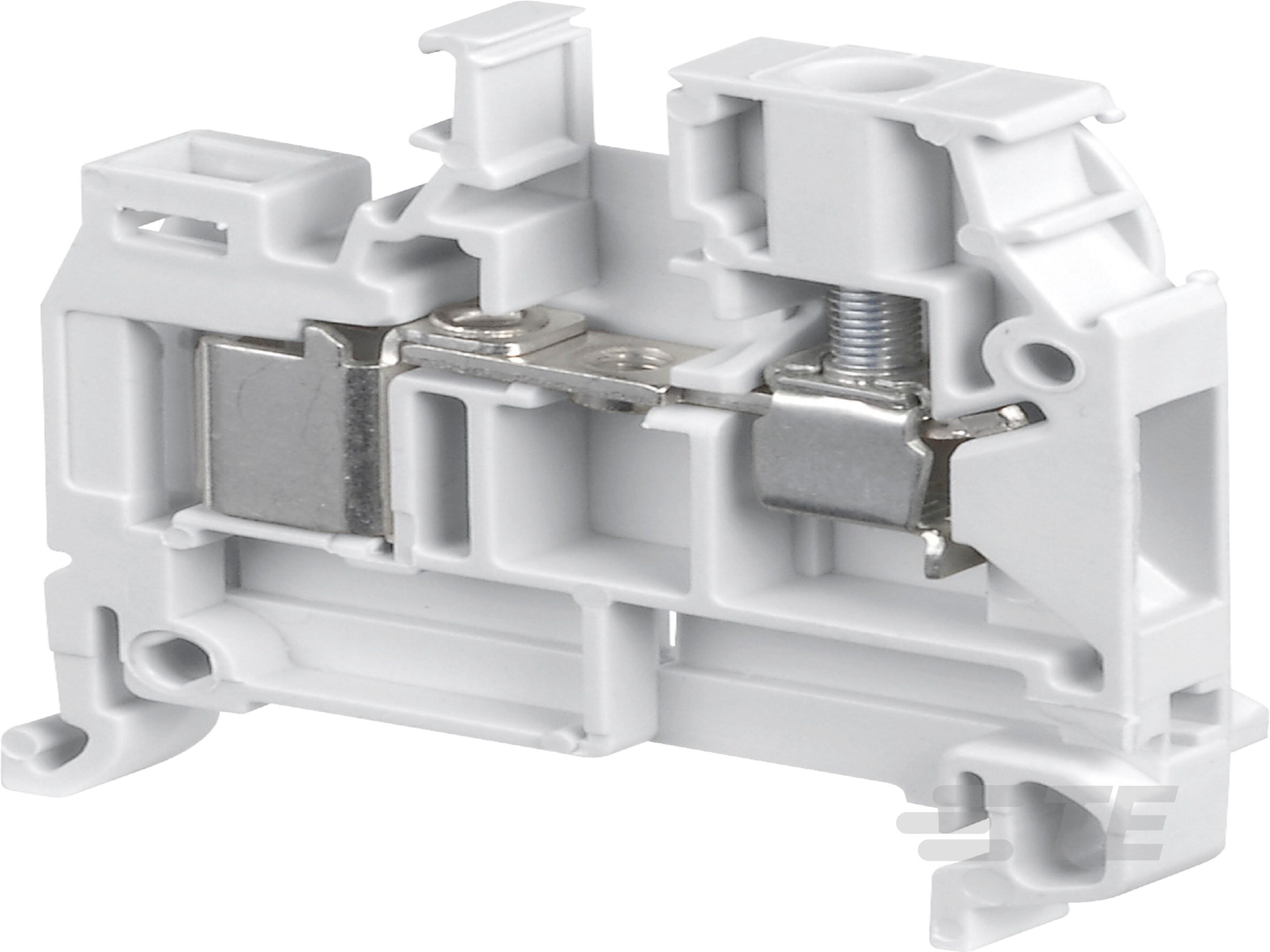

Additional Description: TEC -1SNA199034R1500 (S) D4/6.ADO IDC Terminal Blocks - Feed-through ADO - screw clamp - Grey 019903415
1SNA199034R1500 Application
For Feed-through application1SNA199034R1500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA199034R1500 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #340446Part Number #1SNA199034R1500UNSPSC39121410UPC00662019964546
Image provided may only be a representation of final product and may include optional equipment
