Part Number # 170ADM35011
SKU # 365359
Brand: Square D
170ADM35011
Square D 170ADM35011
Part Number # 170ADM35011
SKU # 365359
$671.90 / Each
Square D 170ADM35011 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 170ADM35011 |
| SKU #: | 365359 |
| Dimensions: | 141.5 mm H x 125 mm W x 47.5 mm D, 47.5 mm L x 125 mm W x 141.5 mm H |
| Series: | 170AD |
| Type: | Solid State Base DC |
| Number of inputs: | 16 |
| Number of outputs: | 16 |
| UNSPSC: | 32151601 |
| UPC: | 00785901307976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$671.90 / Each
Quantity:
Square D 170ADM35011
Brand: Square D
Part Number: 170ADM35011
Additional Description: SQD -170ADM35011 16 DI/16 DO 24VDC,0.5A
Catalog Description: discrete I/O module Modicon Momentum - 16 I/O solid state
170ADM35011 Application
Industrial and Building Automation170ADM35011 Item Features
- Modicum momentum automation platform
- 1 group of 16 inputs, 2 groups of 8 outputs group of channel
- TC protective treatment
- Positive discrete output logic
- -3 to 30 VDC voltage range, -3 to 5 VDC state 0 guaranteed, 11 to 30 VDC state 1 guaranteed
- <=1.2 mA state 0 guaranteed
- 4 kOhm input resistance
- 500 VAC isolation between channel and bus
- <=8 W power dissipation
- 4 kV contacts IEC 801-2 resistance to electrostatic discharge
- 10 V/m 80 to 1000 MHz IEC 801-3 resistance to electromagnetic fields
- -40 to 185 deg F ambient air temperature for storage
- 95% without condensation relative humidity
- <=5000 m operating altitude
- 4 A per group discrete output current
- <1 mA 24 VDC output circuit leakage current
- 5 A peak output current
- <0.5 V 0.5 A at state 1 output circuit voltage drop
- Overload on output fault type
- <0.5 ms from state 0 to state 1 on output response time
170ADM35011 Standards
UL Listed|IEC 801-2|IEC 1131-2, CE|CSA Certified|FM ApprovedSKU #365359Part Number #170ADM35011UNSPSC32151601UPC00785901307976

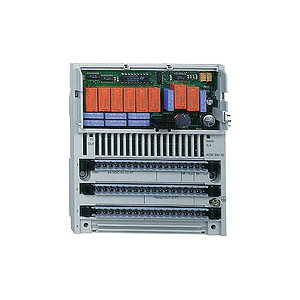

Image provided may only be a representation of final product and may include optional equipment
