Part Number # MG17424
SKU # 36920
Image Disclaimers Message
Brand: Schneider Electric
MG17424
Schneider Electric MG17424
Part Number # MG17424
SKU # 36920
$82.85 / Each
Typical price:$101.00 / Each
Schneider Electric MG17424 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | MG17424 |
| SKU #: | 36920 |
| Actuator Type: | Toggle |
| Amperage Rating: | 5, 5/25 A |
| Dimensions: | 73 mm L x 18 mm W x 81 mm H |
| Enclosure Type: | IP20/IP40 |
| Frame: | M |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 3/5/10, 3/5/10 kA at 277 V |
| Number of Poles: | 1 |
| Phase: | 1 |
| Series: | C60, SJ8665 |
| Suitable For Use With: | Bombardier deHaviland DH-8 Flaptrack Fairing |
| Temperature Rating (Degrees F): | -30 to 70, -30 to 70 deg C |
| Trip Range: | 12X in AC/17X in DC |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Color: | Gray, Transparent |
| Connection type: | Box Lug/Tunnel |
| Country of origin: | FR |
| Length: | 9 |
| Material: | Polyurethane |
| Mounting type: | Clip-On/DIN Rail |
| Width: | 5-1/4 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901889328 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.85 / Each
Typical price:$101.00 / Each
Quantity:

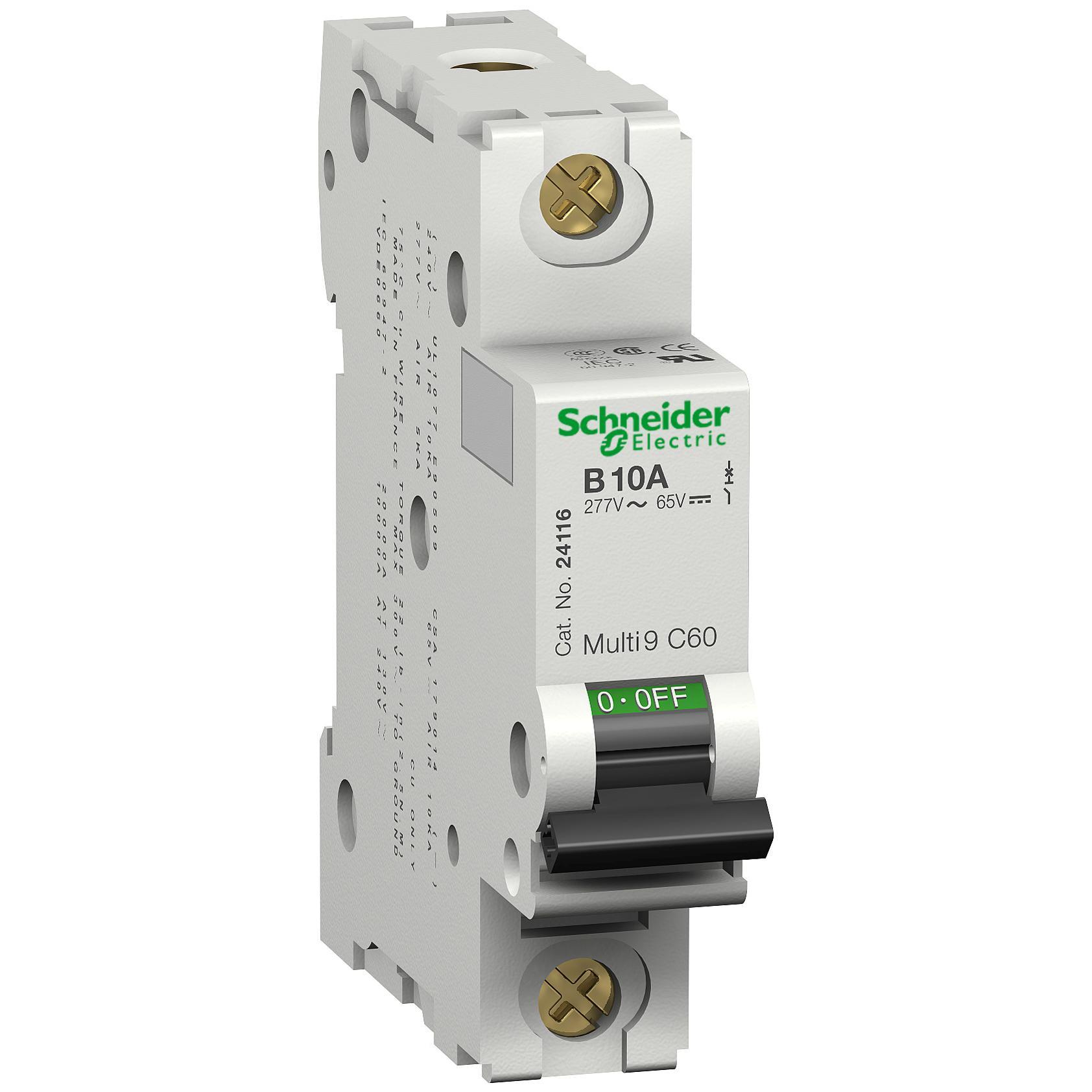

- Schneider Electric Multi 9 C60 Square D Miniature Circuit Breaker, Series: C60, 240/415 VAC, 60 VDC, 5/25 A, 50/60 Hz Frequency, 3/5/10 kA at 277 V Interrupt, M Frame, Thermal Magnetic Trip, 12X in AC/17X in DC Trip, 1 Pole, 1 ph, Toggle Actuator, Box Lug/Tunnel Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -30 to 70 deg C, 73 mm L x 18 mm W x 81 mm H Dimensions, Gray
MG17424 Specifications
- Polyurethane protective boot pre-formed for application on deHaviland DH-8 Flaptrack fairing
- Very tough thermoplastic polyurethane elastomer with acrylic adhesive pre-formed to fit specific shape designated by FP
- Abrasion, erosion, scratch, puncture, moisture and impact resistant
- Contains no VOC's
- Fast and easy to apply
- Provides protection against damage caused by moisture, UV light, wind, sand rain, sleet, snow and other airborne particles
- Gloss surface finish
- 5 in height
MG17424 Application
For supplementary protectors to provide overcurrent protection within appliances or electrical equipment and distribution applicationsMG17424 Item Features
- Trip-free mechanism contact cannot be held in the on position when the C60 is tripped automatically
- Positive indication of contact disconnect
- Green mechanical indication on front face of circuit breaker shows that all poles are open
- Overcurrent protection for load with high inrush currents (motors, transformers)
- Magnetic release operates between 10 and 14 times ampere rating (no DC rating for D curve)
- Allows locking in On/Off position using padlock attachment
- Suitable for reverse feeding
- 10 kA at 240 VAC, 3 kA at 415 VAC, 10 kA at 65 VDC interrupt rating
- On/Off indication
MG17424 Standards
CCC Certified|CE Certified|CSA C22.2 File No. 235, File No. 179014|ECCN: EAR99|EN 60947-2|GB 14048.2|IEC 60529|IEC 60947-2|IEC Certified|RoHS Compliant|UL File No. 1077 File No. E90509|UL RecognizedSKU #36920Part Number #MG17424UNSPSC39121603UPC00785901889328
