Part Number # ZB2BE102
SKU # 37575
ZB2BE102
Schneider Electric ZB2BE102
Part Number # ZB2BE102
SKU # 37575
$9.51 / Each
Typical price:$12.05 / Each
Schneider Electric ZB2BE102 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ZB2BE102 |
| SKU #: | 37575 |
| Contact Rating: | 10 A at 600 V AC/DC, 10 A at 600 VAC/VDC |
| Operator Type: | Slow Break/Spring Return |
| Series: | ZB2 |
| Suitable For Use With: | XACA/XB4/XB5 Series Contact Block |
| Type: | 1-Pole Single |
| UNSPSC: | 39121522 |
| UPC: | 00785901249689 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.51 / Each
Typical price:$12.05 / Each
Quantity:
Schneider Electric ZB2BE102
Brand: Schneider Electric
Part Number: ZB2BE102
Additional Description: SQD -ZB2BE102 CONTACT ELEMENT
ZB2BE102 Item Features
- Slow-break contact operation
- 1 x 2.5 sq-mm with or without cable end screw clamp terminals, connection capacity, 2 x 1.5 sq-mm with or without cable end screw clamp terminals, connection capacity connections terminals
- 1000000 cycles mechanical durability
- 600 V (Pollution deg of 3) conforming to IEC 60947-1 rated insulation voltage
- 6 kV conforming to IEC 60947-1 rated impulse withstand voltage
- <=25 mOhm resistance across terminals
- 40 W DC-13 for 1000000 cycles, 3600 cycle/hr at 120 V operating rate, 0.5 load factor conforming to IEC 60947-5-1, 48 W DC-13 for 1000000 cycles, 3600 cycle/hr at 48 V operating rate, 0.5 load factor conforming to IEC 60947-5-1, 65 W DC-13 for 1000000 cycles, 3600 cycle/hr at 24 V operating rate, 0.5 load factor conforming to IEC 60947-5-1 rated operational power in W
- -25 to 70 deg C operation temperature
ZB2BE102 Standards
UL 508|CSA C22.2 No. 14|EN/IEC 60947-5-1|EN/IEC 60204-32SKU #37575Part Number #ZB2BE102UNSPSC39121522UPC00785901249689

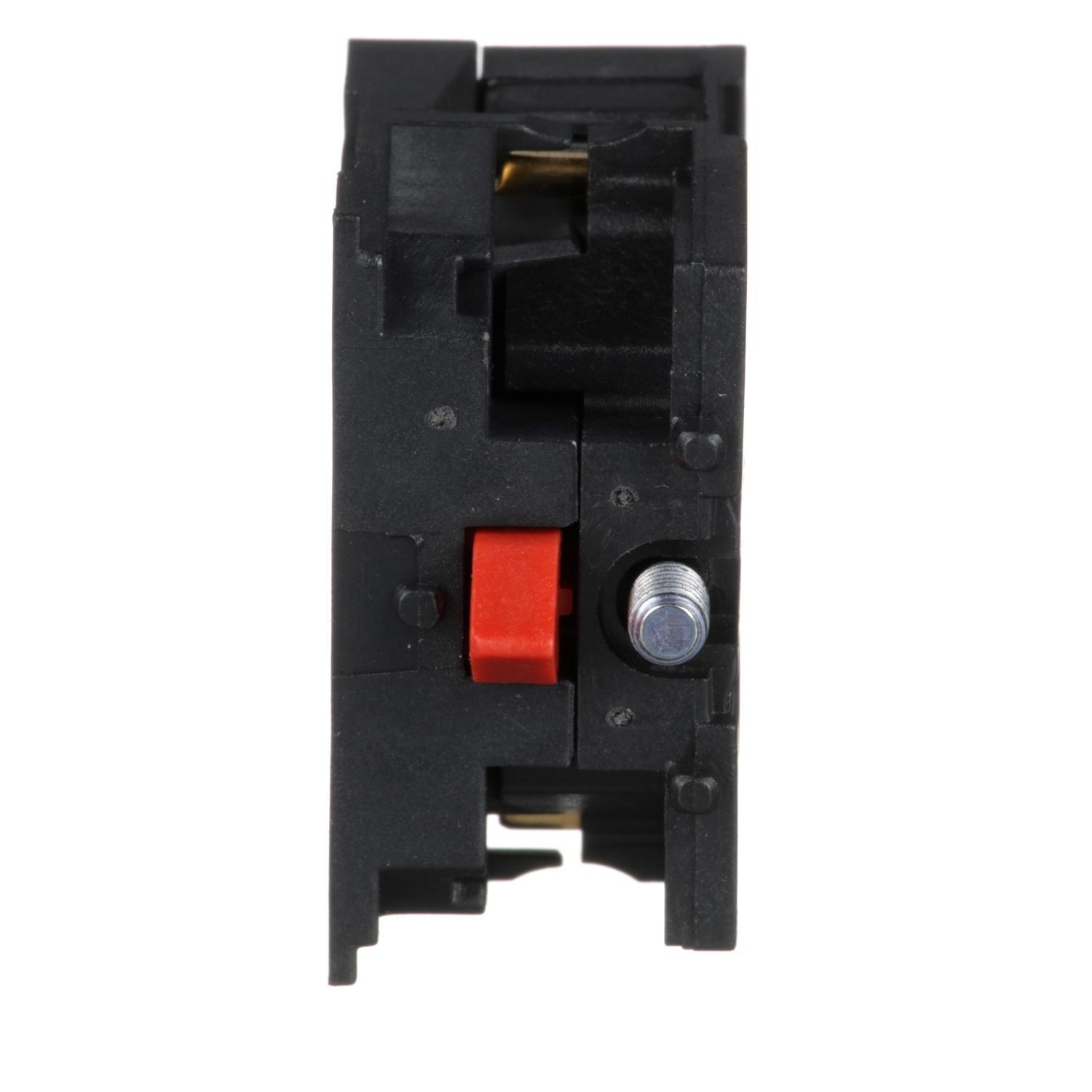

Image provided may only be a representation of final product and may include optional equipment
