3M 27-1/2X66FT Key Features
Brand: 3M
Part Number # 27-1/2X66FT
SKU #38
Backing Material: Glass Cloth
Material Type: Glass Cloth
Maximum Operating Temperature: 302, 302 deg F
Minimum Operating Temperature: 32, 32 deg F
Thickness: 7, 7 mil
Type: Premium Grade, Premium-Grade Special Use
Voltage Rating: 600, 600 VAC
Color: White
Dielectric strength: 3000, 3000 V/mil, 3000 VAC
Length: 66, 66 ft
Width: 1/2, 1/2 in
Country of origin: US
Manufacturer Name: 3M
UNSPSC: 15121804
UPC: 00054007150664
$16.08 / Each
Typical price:$20.43 / Each
SKU # 38
Part Number # 27-1/2X66FT
3M 27-1/2X66FT
Brand: 3M
Part Number: 27-1/2X66FT
Additional Description: 3M -27-1/2X66FT (N) 27 TAPE 1/2 X 66 FT BXD 1" CORE 7000005814

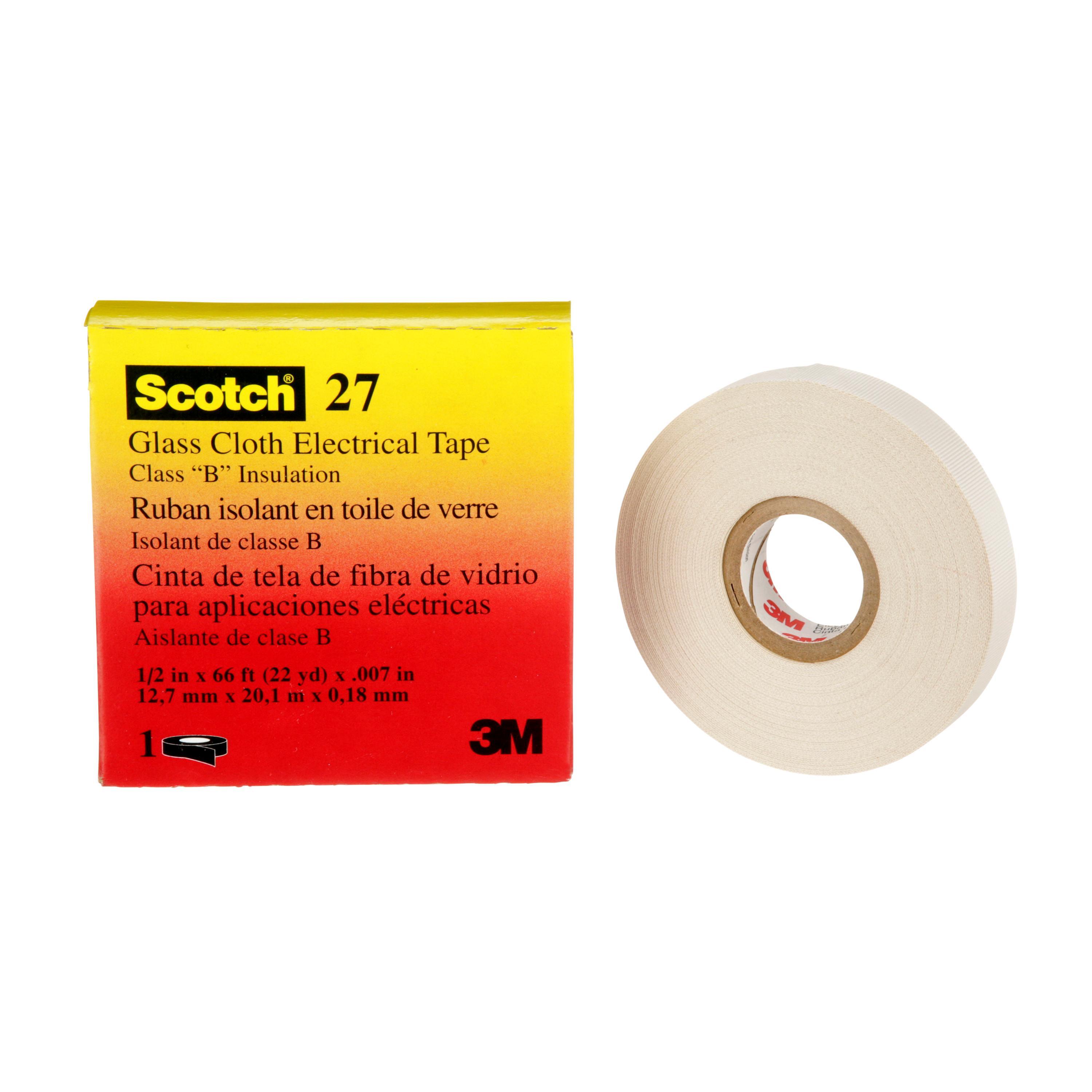

Catalog Description: 3M™ Glass Cloth Electrical Tape 27 is a 7 mil woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
27-1/2X66FT Application
For coil cover, anchor, banding and core, layer and crossover insulation applications27-1/2X66FT Item Features
- PROVIDES A STRONG BOND - At extreme temperatures ranging from low temperature to 302F (up to 150C)
- GLASS CLOTH BACKING - Optimally insulates with no shrinking or burning
- RELIABLE AND RESISTANT - Resists rotting and shrinking after extended use in a variety of environments
- PRESSURE SENSITIVE ADHESIVE - Non - corrosive, solvent resistant, thermosetting rubber adhesive
- https://players.brightcove.net/2635130879001/87204183-1ed0-4d7b-a78e-d5eab05f2605_default/index.html?autoplay=1&videoId=3832730509001
27-1/2X66FT Standards
CSA Certified|UL Listed|RoHS 2011/65/EU CompliantSKU #38Part Number #27-1/2X66FTUNSPSC15121804UPC00054007150664
