9422ARR11
Schneider Electric 9422ARR11
Part Number # 9422ARR11
SKU # 54927
$1093.95 / Each
Schneider Electric 9422ARR11 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9422ARR11 |
| SKU #: | 54927 |
| Handle Mounting Position: | Flange |
| Handle/Operation: | Handle/Rod |
| Series: | 9422R |
| Suitable For Use With: | Type LAL, LHL, Q4L 400 A 2/3-Pole Circuit Breaker |
| Type: | Bracket Mount Variable Depth |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122233 |
| UPC: | 00785901120414 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1093.95 / Each
Quantity:

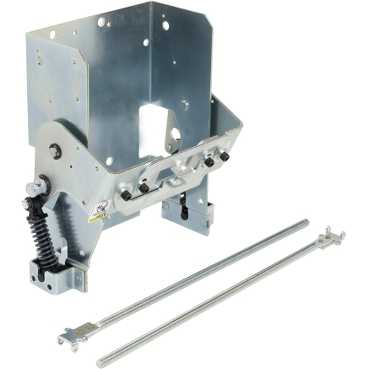

- Square D Circuit Breaker Disconnect Operating Mechanism, Bracket Mount Variable Depth, Series: 9422R, Handle/Rod Handle/Operation, Flange Handle Mounting Position, For Use With: Type LAL, LHL, Q4L 400 A 2/3-Pole Circuit Breaker, 7.44 to 18.25 in Handle to Device Connection
9422ARR11 Specifications
- Suitable for either right or left-hand flange mounting, convertible on the job for flexibility
9422ARR11 Application
For installation in custom built control enclosures where main or branch circuit protective devices are required applications9422ARR11 Includes
9422A1 6 in Handle9422ARR11 Item Features
- Either right or left hand flange mounting
- Convertible on the job for flexibility
- Works with PowerPacT H/J/D/M/P
9422ARR11 Standards
UL Recognized;CSA9422ARR11 Warranty
18 MonthsSKU #54927Part Number #9422ARR11UNSPSC39122233UPC00785901120414
Image provided may only be a representation of final product and may include optional equipment
