Part Number # LC2K0610B7
SKU # 64837
Image Disclaimers Message
LC2K0610B7

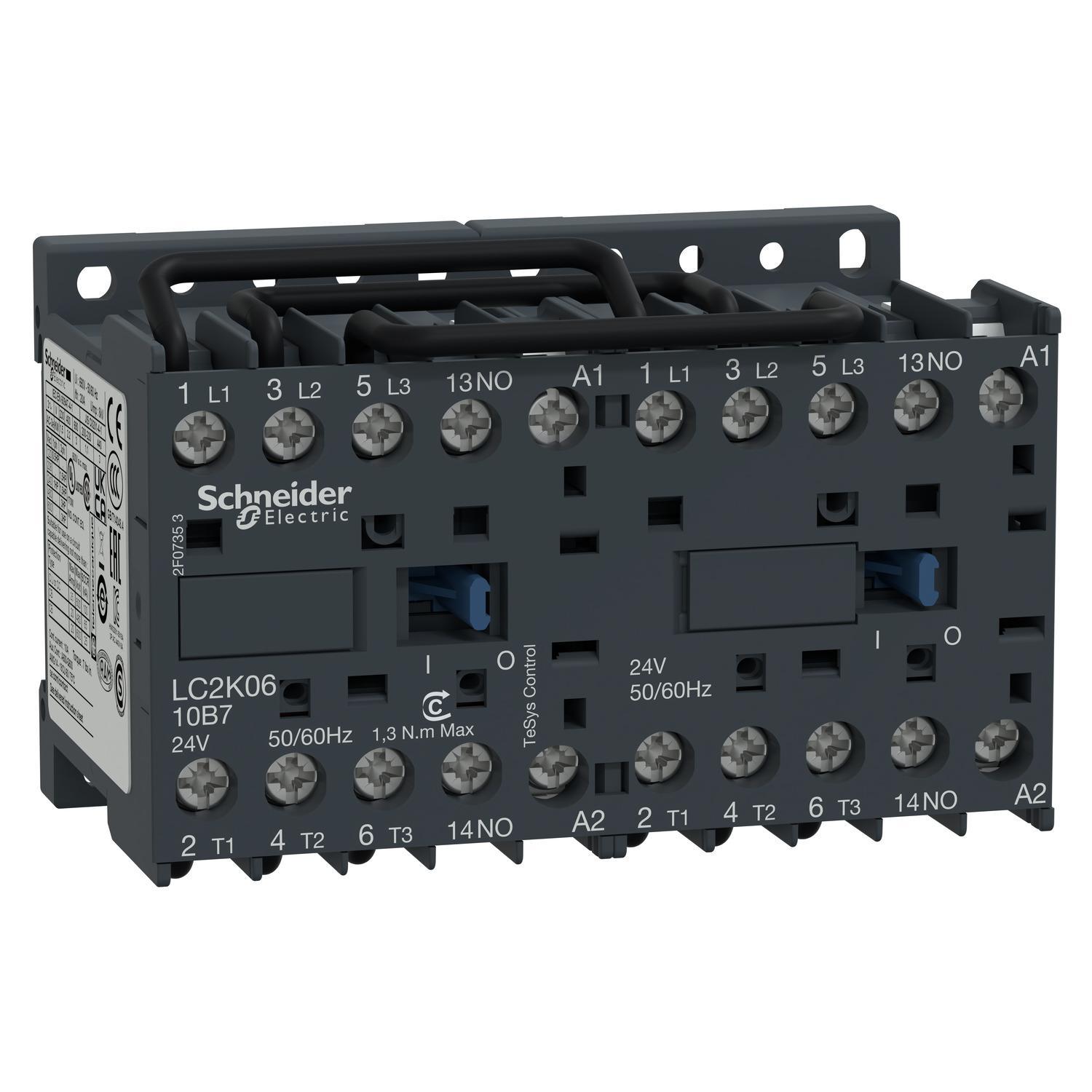

Schneider Electric LC2K0610B7
Part Number # LC2K0610B7
SKU # 64837
$129.10 / Each
Schneider Electric LC2K0610B7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2K0610B7 |
| SKU #: | 64837 |
| Coil Power Rating: | 3 kW 660 to 690 VAC |
| Coil Voltage: | 24, 24/690, 24/690 V AC, 24/690 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.28 in H x 3.54 in W x 2.24 in D, 3.54 in W x 2.24 in D x 2.28 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -25 to 50, -25 to 50 deg C |
| Series: | LC2K, TeSys™ K LC2K |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Miniature Reversing, Reversing |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Plate/Rail, Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901641797 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$129.10 / Each
Quantity:
- Schneider Electric TeSys K IEC Contactor, Miniature Reversing, Series: LC2K, 24/690 V AC Coil, 6 A Maximum Load Current, 3 kW 660 to 690 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Screw Clamp Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 3.54 in W x 2.24 in D x 2.28 in H Dimensions
LC2K0610B7 Application
General Duty and Motor Control ApplicationLC2K0610B7 Item Features
- Rated 6A AC-3 2.2kW at 400V
LC2K0610B7 Standards
CB Scheme;CCC;UL;CSA;EAC;CE;UKCASKU #64837Part Number #LC2K0610B7UNSPSC39121529UPC00785901641797
