Part Number # T60100-3C
SKU # 8476
Image Disclaimers Message
Brand: Bussmann
T60100-3C

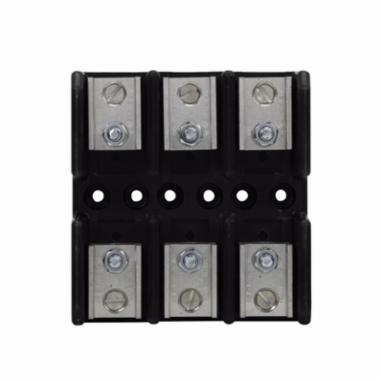

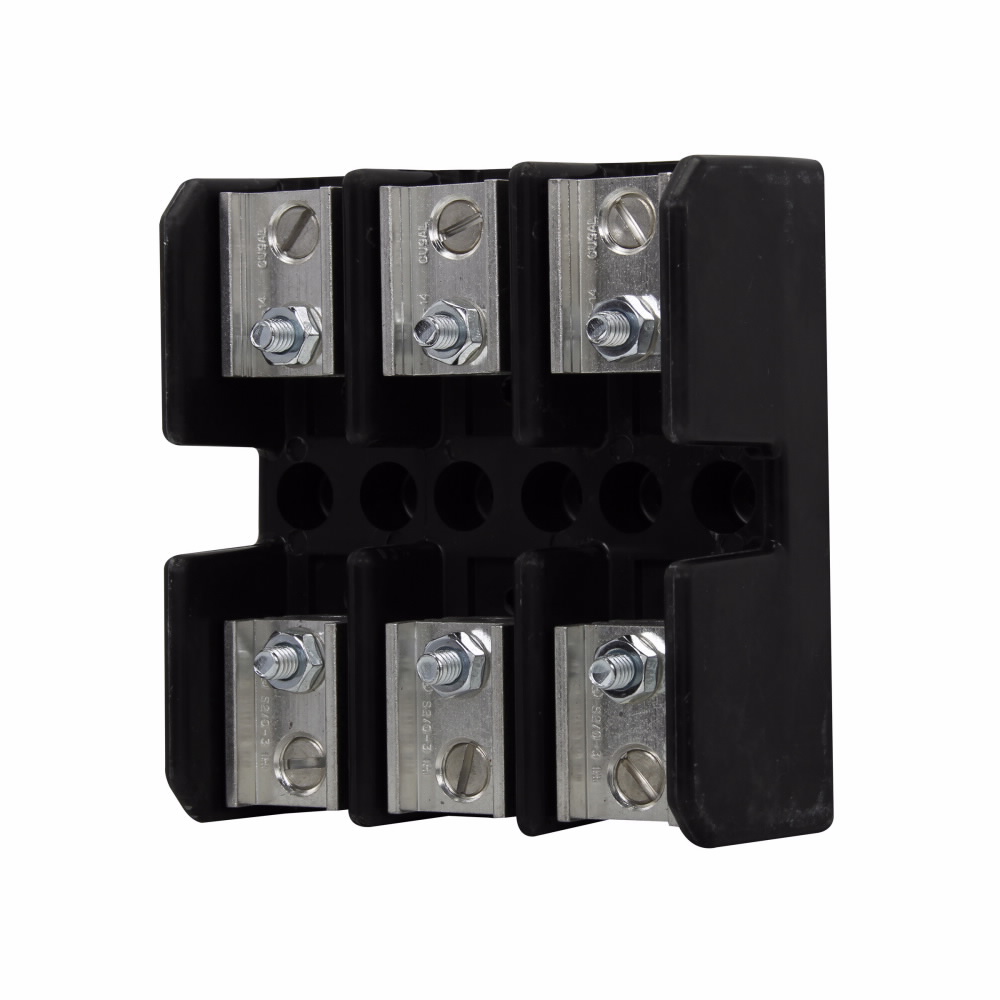

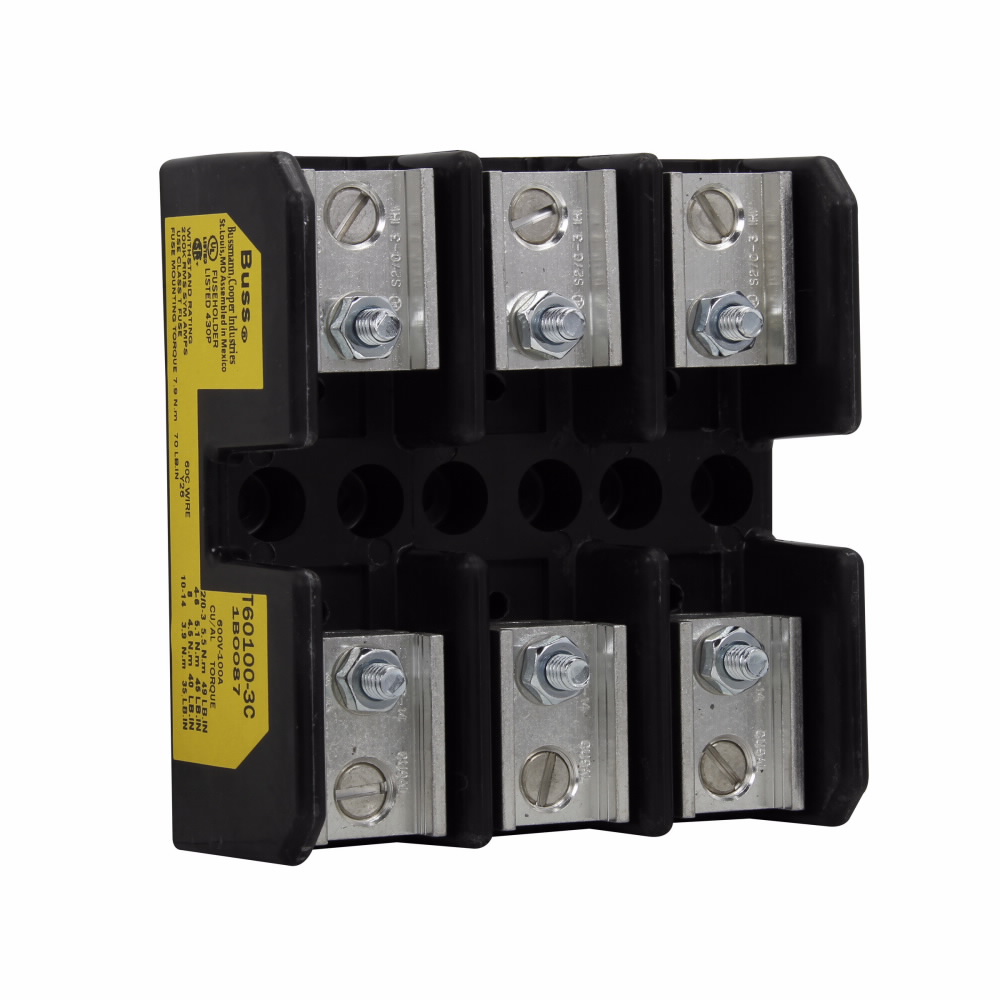

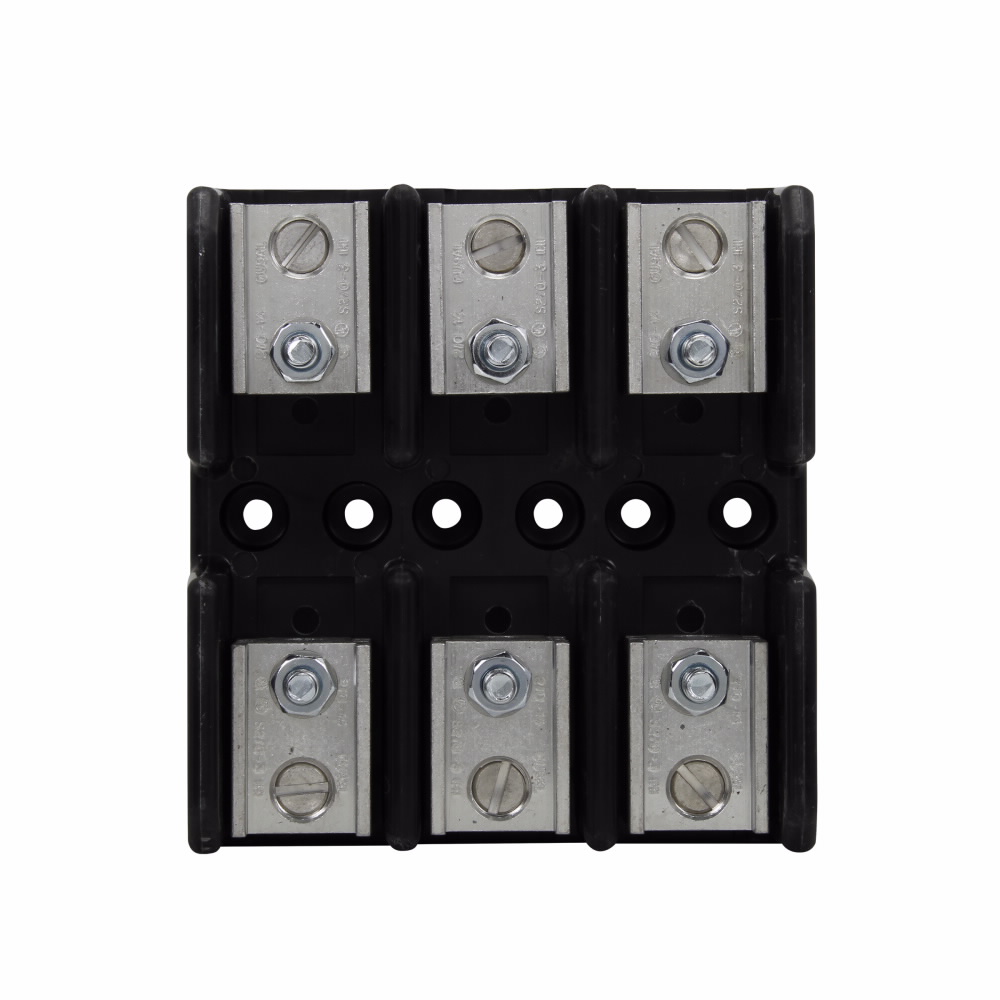

Bussmann T60100-3C
Part Number # T60100-3C
SKU # 8476
$349.23 / Each
Typical price:$595.02 / Each
Bussmann T60100-3C Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | T60100-3C |
| SKU #: | 8476 |
| Amperage Rating: | 61 to 100 |
| Class: | T |
| Dimensions: | 4-1/2 in W |
| Fuse Diameter: | 3/4 |
| Fuse Length: | 2.95 |
| Number of Poles: | 3 |
| Series: | T600 |
| Suitable For Use With: | JJS Class T Fuse |
| Type: | Open Style |
| Wire Size: | 14 to 2/0 |
| Color: | Black |
| Connection type: | Box Lug |
| Material: | Glass Polyester |
| Mounting type: | Chassis |
| UNSPSC: | 39121624 |
| UPC: | 00051712147163 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$349.23 / Each
Typical price:$595.02 / Each
Quantity:
Bussmann T60100-3C
Brand: Bussmann
Part Number: T60100-3C
Additional Description: BUSS-T60100-3C CLASS T FUSEBLOCK
Catalog Description: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less control systems, 61-100 A, Three-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2/0 AWG Cu/Al
T60100-3C Specifications
- Interrupt rating of 200 kA RMS symmetrical
- Class T fuse blocks have a small foot print, providing substantial space savings in equipment
- 2/0 AWG copper/aluminum wire
SKU #8476Part Number #T60100-3CUNSPSC39121624UPC00051712147163
