Part Number # 202382300000
SKU # 931709
Image Disclaimers Message
202382300000
Finder 202382300000
Part Number # 202382300000
SKU # 931709
$27.06 / Each
Typical price:$37.77 / Each
Finder 202382300000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 202382300000 |
| SKU #: | 931709 |
| Amperage Rating: | 16 A |
| Coil Voltage: | 230 V AC, 230 VAC |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 58.4 mm L x 17.4 mm W x 84 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 20 Series |
| Temperature Rating (Degrees F): | -40 to 40 deg C |
| Terminal Type: | Screw |
| Type: | 2-Step Impulse Latching |
| Mounting type: | DIN Rail |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122317 |
| UPC: | 08012823267111 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$27.06 / Each
Typical price:$37.77 / Each
Quantity:

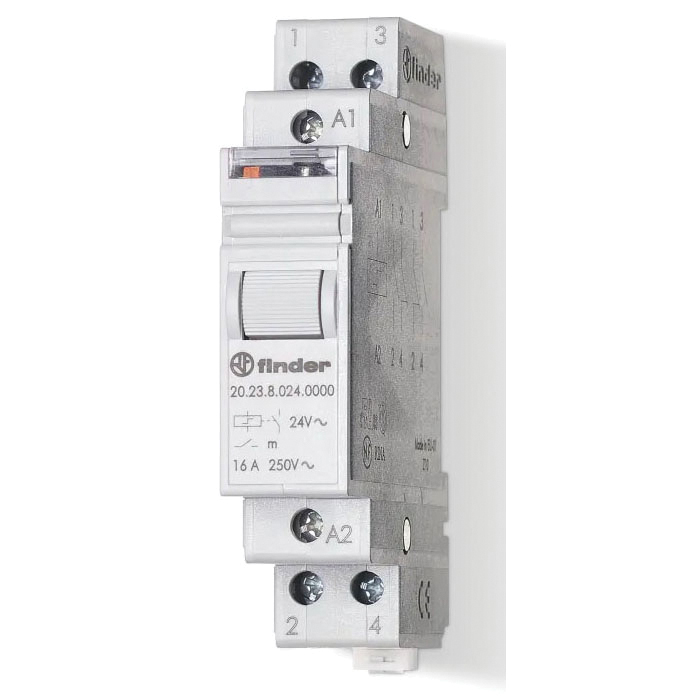

- Finder Modular Step Relay, 2-Step Impulse Latching, Series: 20 Series, 16 A, 6.5 VA/5 W Power, 50/60 Hz Frequency, 230 V AC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 Poles, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -40 to 40 deg C, 58.4 mm L x 17.4 mm W x 84 mm H Dimensions
202382300000 Application
Automation, Bedroom Light Control and Lighting Control in Corridor Applications202382300000 Item Features
- One module 17.4 mm W
- Test button and mechanical indicator
- Seven sequences
- AC/DC coils
- Identification label
- Connection with illuminated pushbuttons via the type 026.00 adapter
- Cadmium-free contact material
- AgNi contact
202382300000 Standards
CE Certified|cRUus Listed|EAC Compliant|EN 60715|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL ListedSKU #931709Part Number #202382300000UNSPSC39122317UPC08012823267111
