Part Number # MG24517
SKU # 968474
Image Disclaimers Message
MG24517

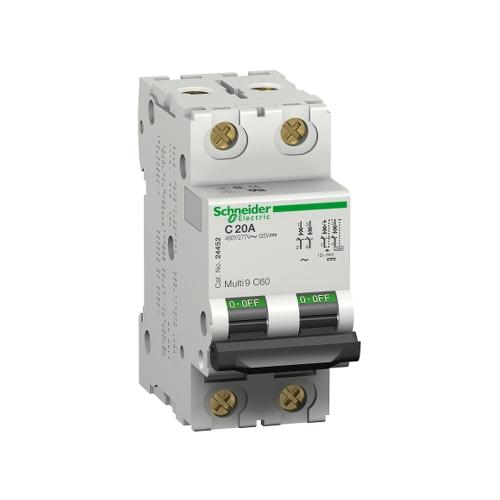

Schneider Electric MG24517
Part Number # MG24517
SKU # 968474
$178.82 / Each
Typical price:$218.00 / Each
Schneider Electric MG24517 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | MG24517 |
| SKU #: | 968474 |
| Actuator Type: | Toggle |
| Amperage Rating: | 2, 2 A |
| Dimensions: | 2.87 in L x 1.42 in W x 3.19 in H |
| Enclosure Type: | IP20/IP40 |
| Frame: | M |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 6/10, 6/10 kA |
| Number of Poles: | 2 |
| Series: | C60 |
| Temperature Rating (Degrees F): | -22 to 158, -22 to 158 deg F |
| Trip Type: | D-Curve/Thermal Magnetic, Thermal Magnetic |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Color: | Gray |
| Connection type: | Tunnel |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901881155 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$178.82 / Each
Typical price:$218.00 / Each
Quantity:
- Schneider Electric Multi 9 Miniature Circuit Breaker, Series: C60, 240/415/440 VAC, 125 VDC, 2 A, 50/60 Hz Frequency, 6/10 kA Interrupt, M Frame, Thermal Magnetic Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -22 to 158 deg F, 2.87 in L x 1.42 in W x 3.19 in H Dimensions, Gray
MG24517 Specifications
- Trip-free mechanism contacts cannot be held in the on position when the C60 is tripped automatically
- Positive indication of contact disconnect
- Green mechanical indication on front face of circuit breaker shows that all poles are open
- Overcurrent protection for loads with high inrush currents (motors, transformers)
- Magnetic release operates between 10 and 14 times ampere rating (no DC rating for D curve)
- Allows locking in ON-OFF position using padlock attachment
- Suitable for reverse feeding
- 10 kA at 240 VAC, 10 kA at 125 VDC, 6 kA at 440 VAC, 10 kA at 415 VAC interrupt rating
MG24517 Application
For supplementary protectors to provide overcurrent protection within appliances or electrical equipmentMG24517 Item Features
- Trip-free mechanism contacts cannot be held in the on position when the C60 is tripped automatically
- Positive indication of contact disconnect
- Green mechanical indication on front face of circuit breaker shows that all poles are open
- Overcurrent protection for loads with high inrush currents (motors, transformers)
- Magnetic release operates between 10 and 14 times ampere rating (no DC rating for D curve)
- Allows locking in ON-OFF position using padlock attachment
- Suitable for reverse feeding
- 10 kA at 240 VAC, 10 kA at 125 VDC, 6 kA at 440 VAC, 10 kA at 415 VAC interrupt rating
MG24517 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1077 File No. E90509|CSA C22.2 No. 235 File No. 179014|IEC 60947-2|CE Marked|eccn: EAR99SKU #968474Part Number #MG24517UNSPSC39121603UPC00785901881155
