Part Number # 1SVR360663R1001
SKU # 2348636
Image Disclaimers Message
1SVR360663R1001

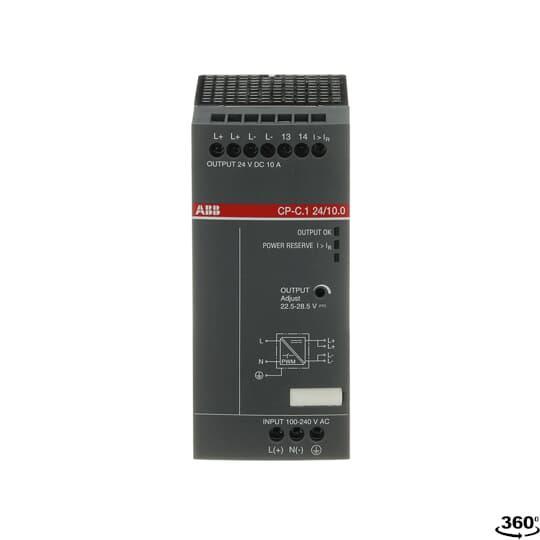

ABB 1SVR360663R1001 Power Supply
Part Number # 1SVR360663R1001
SKU # 2348636
$520.52 / Each
Typical price:$683.83 / Each
ABB 1SVR360663R1001 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR360663R1001 |
| SKU #: | 2348636 |
| Amperage Rating: | 10 A |
| Frequency Rating: | 50/60 Hz |
| Input Voltage: | 85 to 264 V AC, 90 to 300 V DC, 85 to 264 VAC, 90 to 300 VDC |
| Series: | 1SVR |
| Type: | Switch Mode |
| Depth: | 136 mm |
| Height: | 129.4 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 60 mm |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04013614503825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$520.52 / Each
Typical price:$683.83 / Each
Quantity:
- ABB, 1SVR360663R1001, Power Supply, Switch Mode, Series: 1SVR, 85 to 264 V AC, 90 to 300 V DC Input, 24 VDC Output, 240 W Power, 10 A, 50/60 Hz Frequency, DIN Rail Mounting, 60 mm Width, 136 mm Depth, 129.4 mm Height
1SVR360663R1001 Item Features
- The CP-C.1 24/10.0 is a power supply from the CP-C.1 range
- The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy
1SVR360663R1001 Standards
CAN/CSA C22.2 No.107.1|IEC/EN 63000|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 61204|UL 508|IEC/EN 61010-1|UL 61010-1|UL 61010-2-201|PROP65SKU #2348636Part Number #1SVR360663R1001UNSPSC39121004UPC04013614503825
