Part Number # 1SVR360763R1001
SKU # 2351783
Image Disclaimers Message
1SVR360763R1001

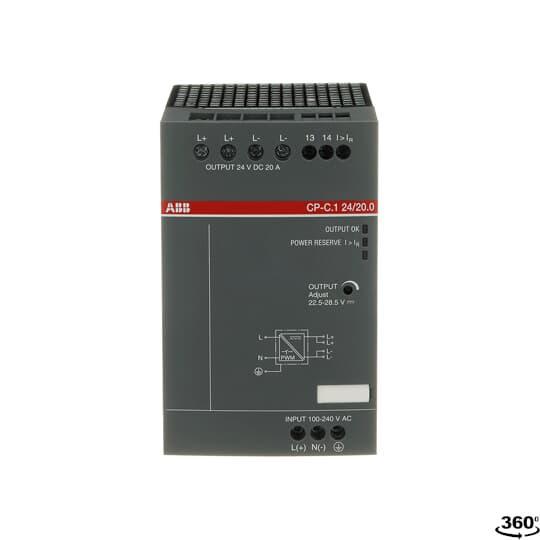

ABB 1SVR360763R1001 Power Supply
Part Number # 1SVR360763R1001
SKU # 2351783
$691.28 / Each
Typical price:$908.16 / Each
ABB 1SVR360763R1001 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR360763R1001 |
| SKU #: | 2351783 |
| Amperage Rating: | 20 A |
| Frequency Rating: | 50/60 Hz |
| Input Voltage: | 85 to 264 V AC, 90 to 300 V DC, 85 to 264 VAC, 90 to 300 VDC |
| Series: | 1SVR |
| Type: | Switch Mode |
| Depth: | 136 mm |
| Height: | 129.4 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 82 mm |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04013614503832 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$691.28 / Each
Typical price:$908.16 / Each
Quantity:
- ABB, 1SVR360763R1001, Power Supply, Switch Mode, Series: 1SVR, 85 to 264 V AC, 90 to 300 V DC Input, 24 VDC Output, 480 W Power, 20 A, 50/60 Hz Frequency, DIN Rail Mounting, 82 mm Width, 136 mm Depth, 129.4 mm Height
1SVR360763R1001 Item Features
- The CP-C.1 24/20.0 is a power supply from the CP-C.1 range
- The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC
- The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC
- The output voltage is adjustable within a range of 22.5 to 28.5 V DC
- The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy
1SVR360763R1001 Standards
CAN/CSA C22.2 No.107.1|IEC/EN 63000|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 61204|UL 508|IEC/EN 61010-1|UL 61010-1|UL 61010-2-201|PROP65SKU #2351783Part Number #1SVR360763R1001UNSPSC39121004UPC04013614503832
