Part Number # 1SVR360763R2001
SKU # 2435095
1SVR360763R2001

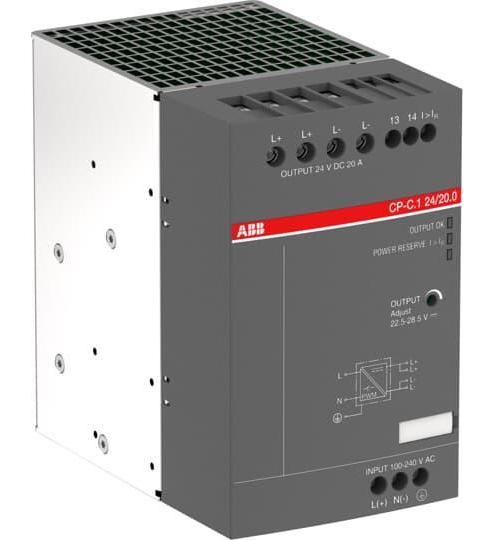

ABB 1SVR360763R2001
Part Number # 1SVR360763R2001
SKU # 2435095
ABB 1SVR360763R2001 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR360763R2001 |
| SKU #: | 2435095 |
| Amperage Rating: | 20 A |
| Frequency Rating: | 50/60 Hz |
| Input Voltage: | 85 to 264 V AC, 90 to 300 V DC, 85 to 264 VAC, 90 to 300 VDC |
| Series: | 1SVR |
| Type: | Switch Mode |
| Depth: | 136 mm |
| Height: | 129.4 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 82 mm |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04013614503863 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR360763R2001
Brand: ABB
Part Number: 1SVR360763R2001
Additional Description: ABB -1SVR360763R2001 (N) CP-C.1 24/20.0-C NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CP-C.1 24/20.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
1SVR360763R2001 Item Features
- The CP-C.1 24/20.0-C is a power supply from the CP-C.1 range with coated PCBA
- The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC
- The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy
1SVR360763R2001 Standards
CAN/CSA C22.2 No.107.1|IEC/EN 63000|IEC/EN 60079-0|IEC/EN 60079-15|IEC/EN 60079-7|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 61204|UL 508|UL 61010-1|UL 61010-2-201|IEC/EN 61010-1|PROP65SKU #2435095Part Number #1SVR360763R2001UNSPSC39121004UPC04013614503863
Image provided may only be a representation of final product and may include optional equipment
