Part Number # 1SVR405501R2010
SKU # 2453405
Image Disclaimers Message
Brand: ABB
1SVR405501R2010
ABB 1SVR405501R2010
Part Number # 1SVR405501R2010
SKU # 2453405
$61.20 / 10Each
Typical price:$104.30 / Each
ABB 1SVR405501R2010 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405501R2010 |
| SKU #: | 2453405 |
| Amperage Rating: | 0.11 A |
| Coil Voltage: | 12 V DC, 12 VDC |
| Contact Form: | 1CO 1 Form C SPDT |
| Contact Rating: | 250 V, 6 A |
| Dimensions: | 28 mm L x 5 mm W x 15 mm H |
| Number of Poles: | 1 |
| Series: | CR-S |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Screw |
| Type: | Pluggable |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614499104 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.20 / 10Each
Typical price:$104.30 / Each
Quantity:

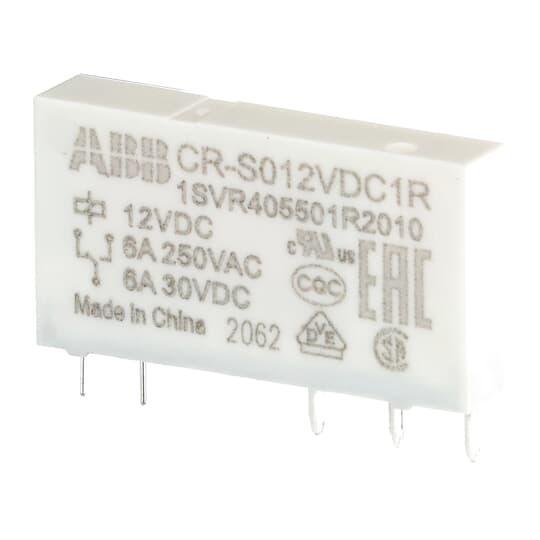

- ABB, 1SVR405501R2010, Interface Relay, Pluggable, Series: CR-S, 0.11 A, 170 mW Power, 12 V DC Coil, 1CO 1 Form C SPDT Contact Form, 250 V, 6 A Contact, 1 Pole, Socket Mounting, Screw Terminal, -40 to 85 deg C, 28 mm L x 5 mm W x 15 mm H Dimensions
1SVR405501R2010 Application
For electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC, PC or field bus systems and the sensor/actuator level1SVR405501R2010 Item Features
- 6/1.5 A at 230 VAC, 3 A at 120 VAC
- 6/1 A at 24 VDC, 0.22 A at 120 VDC, 0.11 A at 250 VDC
1SVR405501R2010 Standards
CSA Certified|cUL Recognized|VDE Certified|IEC/EN 61810-1SKU #2453405Part Number #1SVR405501R2010UNSPSC39122331UPC04013614499104
