Part Number # 1SVR405521R3100
SKU # 2376401

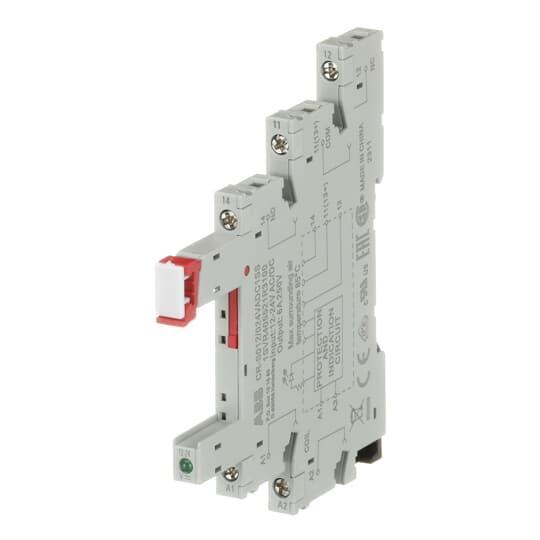

Image provided may only be a representation of
final product and may include optional equipment
1SVR405521R3100
ABB 1SVR405521R3100 Socket
Part Number # 1SVR405521R3100
SKU # 2376401
$9.78 / Each
Typical price:$16.65 / Each
ABB 1SVR405521R3100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405521R3100 |
| SKU #: | 2376401 |
| Amperage Rating: | 11 to 16 mA Input, 6 A Output, 11 to 16 mA Input/6 A Output |
| Coil Voltage: | 12/24 V AC/DC Input, 250 V AC Output, 12/24 VAC/VDC Input, 250 VAC Output |
| Contact Form: | 1CO, 1CO 1 Form C |
| Contact Rating: | 250 V AC 6 A, 250 VAC 6 A |
| Dimensions: | 88.5 mm L x 6.3 mm W x 76.4 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Number of Poles: | 1 |
| Series: | CR-S |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Standard |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122335 |
| UPC: | 04013614499203 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.78 / Each
Typical price:$16.65 / Each
Quantity:
ABB 1SVR405521R3100 Socket
Brand: ABB
Part Number: 1SVR405521R3100
ABB Socket, Series: CR-S, 11 to 16 mA Input, 6 A Output, 12/24 VAC/VDC Input, 250 VAC Output Coil, 1 Pole, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, -40 to 70 deg C, 88.5 mm L x 6.3 mm W x 76.4 mm H Dimensions
Additional Description: ABB -1SVR405521R3100 (N) CR-S012/024VADC1SS SOCKET NON-CANCELABLE, NON-RETURNABLE
Catalog Description: CR-S012/024VADC1SS Socket 1c/o, A1-A2=12-24VAC/DC, 250VAC screw terminals
1SVR405521R3100 Application
For electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC, PC or field bus systems and the sensor/actuator level1SVR405521R3100 Standards
IEC/EN 61984|CSA Certified|cULus Recognized|VDE CertifiedSKU #2376401Part Number #1SVR405521R3100UNSPSC39122335UPC04013614499203
