1SVR405600R2000

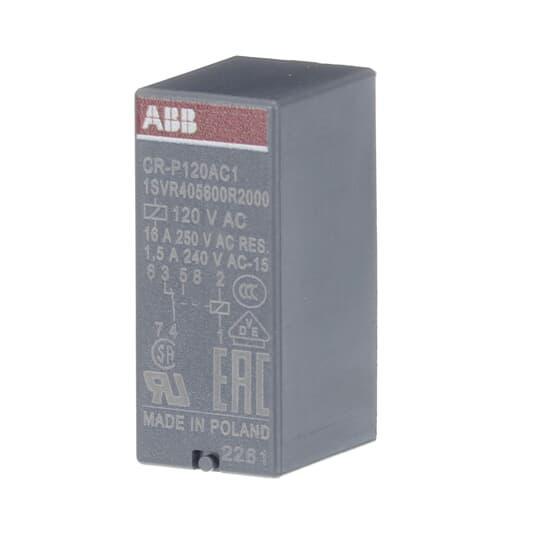

ABB 1SVR405600R2000 Pluggable Interface Relay
Part Number # 1SVR405600R2000
SKU # 2321414
$65.20 / 10Each
Typical price:$111.10 / Each
ABB 1SVR405600R2000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405600R2000 |
| SKU #: | 2321414 |
| Amperage Rating: | 16 A |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Form: | 1CO 1 Form C SPDT, 1CO SPDT, 1CO/SPDT |
| Contact Rating: | 16 A at 250 V, 250 V DC, 250 VDC |
| Dimensions: | 0.5 in W x 1.14 x in D x 0.62 in H, 29 mm H x 12.7 mm W x 15.7 mm D |
| Enclosure Type: | IP67 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | CR-P |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Pluggable |
| Country of origin: | PL |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498152 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$65.20 / 10Each
Typical price:$111.10 / Each
Quantity:
- ABB, 1SVR405600R2000, Interface Relay, Pluggable, Series: CR-P, 16 A, 4000 W Power, 50/60 Hz Frequency, 120 V AC Coil, 1CO 1 Form C SPDT Contact Form, 250 VDC Contact, 1 Pole, Socket Mounting, IP67 Enclosure, -40 to 70 deg C, 29 mm H x 12.7 mm W x 15.7 mm D Dimensions
1SVR405600R2000 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405600R2000 Item Features
- Reverse polarity prediction/free wheeling diode
- 15.8 in W on socket
- 9 different rated control supply voltages
- 15.5 mm width of socket
- LED indication
- Suited for logical and standard sockets
- Cadmium free contact material
- Overvoltage prediction
- For applications where low current control voltage is used to switch higher current or voltage loads
- Without LED
- Pluggable function modules
1SVR405600R2000 Standards
UL Listed|UL/EU Directive 2011/65/EC RoHS Status|CCC_2007010303228779 CCC Certificate|CSA_1587291 CSA Certificate|cUR_E244330 cUR Certificate|UR_E244330 UR Certificate|VDE_40019129 VDE CertificateSKU #2321414Part Number #1SVR405600R2000UNSPSC39122331UPC04013614498152
