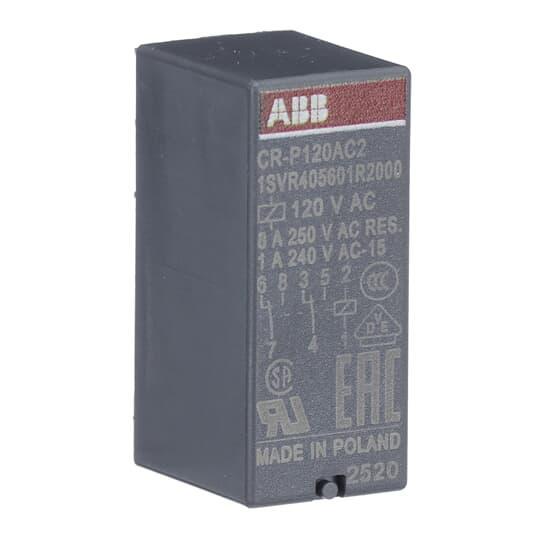

ABB 1SVR405601R2000 Pluggable Interface Relay
Part Number # 1SVR405601R2000
SKU # 2220400
$73.60 / 10Each
Typical price:$125.30 / Each
ABB 1SVR405601R2000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405601R2000 |
| SKU #: | 2220400 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO SPDT, 2CO-SPDT |
| Contact Rating: | 250 V AC, 250 VAC, 8 A at 250 V |
| Dimensions: | 12.7 mm W x 29 mm D x 15.7 mm H, 15.7 mm H x 12.7 mm W x 29 mm D |
| Enclosure Type: | IP67 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Series: | CR-P |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Pluggable |
| Country of origin: | PL |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498244 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$73.60 / 10Each
Typical price:$125.30 / Each
Quantity:
- ABB, 1SVR405601R2000, Interface Relay, Pluggable, Series: CR-P, 8 A, 2000 VA Power, 50/60 Hz Frequency, 120 V AC Coil, 2CO 2 Form C DPDT Contact Form, 250 VAC Contact, 2 Pole, Socket Mounting, IP67 Enclosure, -40 to 70 deg C, 15.7 mm H x 12.7 mm W x 29 mm D Dimensions
1SVR405601R2000 Application
For use with plug-in CR type relays1SVR405601R2000 Item Features
- Cadmium-free contact material
- Reverse polarity prediction/free wheeling diode
- 15.8 in W on socket
- Pluggable function modules
- General purpose relay
- 15.5 mm width of socket
- Overvoltage prediction
- 9 different rated control supply voltages
- Suited for logical and standard sockets
- Without LED indicator
1SVR405601R2000 Standards
BAA Compliant|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|GOST Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR Listed|GOST Certified|CCC Certified|CSA File No 1587291|cUL File No E244330 Recognized|EAC Certified|RMRS Certified|UR File No E244330|VDE File No 40019129|RoHS CompliantSKU #2220400Part Number #1SVR405601R2000UNSPSC39122331UPC04013614498244
