Brand: ABB
1SVR405611R0100

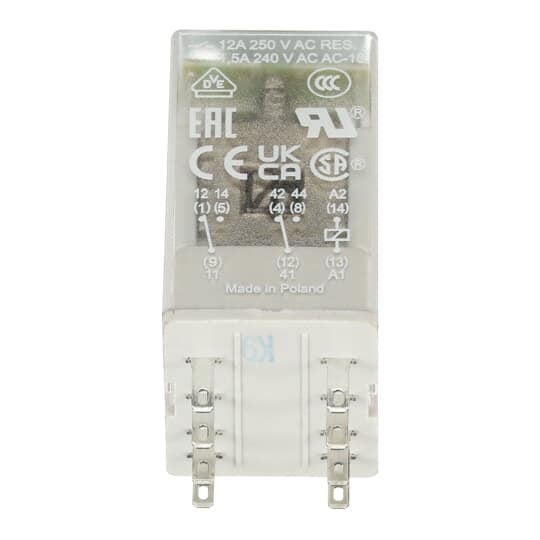

ABB 1SVR405611R0100 Interface Relay
Part Number # 1SVR405611R0100
SKU # 2371089
$121.60 / 10Each
Typical price:$207.40 / Each
ABB 1SVR405611R0100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405611R0100 |
| SKU #: | 2371089 |
| Amperage Rating: | 12 A |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Form: | 2CO 2 Form C SPDT, 2CO-SPDT |
| Contact Rating: | 250 V DC, 250 VDC |
| Dimensions: | 27.5 mm H x 21.2 mm W x 35.6 mm D |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55 deg C |
| Type: | Pluggable Miniature |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497216 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$121.60 / 10Each
Typical price:$207.40 / Each
Quantity:
- ABB, 1SVR405611R0100, Interface Relay, Pluggable Miniature, Series: CR-M, 12 A, 3000 W Power, 50/60 Hz Frequency, 24 V AC Coil, 2CO 2 Form C SPDT Contact Form, 250 VDC Contact, Socket Mounting, LED Display, IP40 Enclosure, -40 to 55 deg C, 27.5 mm H x 21.2 mm W x 35.6 mm D Dimensions
1SVR405611R0100 Application
For link the electronic controlling PLC, PC or field bus system to the sensor/actuator level1SVR405611R0100 Item Features
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- RC elements
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- Amplification of weak control signals, electrical isolation of control and load circuits, and signal multiplying
- Overload-proof against short-time variations like current or voltage peaks
- LED indication
- With or without integrated LED
- Logical or standard sockets
- Overvoltage prediction
- Cadmium free contact material
1SVR405611R0100 Standards
CCC_2014010303720193 CCC Certificate|CSA_2735700 CSA Certificate|cUR_E244330 cUR Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|RMRS_12.04008.250 RMRS Certificate|UR_E244330 UR Certificate|VDE_40040327 VDE Certificate|1SVD981001-4400 RoHS Information|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|RMRS Certified|VDE Certified|UR Listed|UL ListedSKU #2371089Part Number #1SVR405611R0100UNSPSC39122331UPC04013614497216
