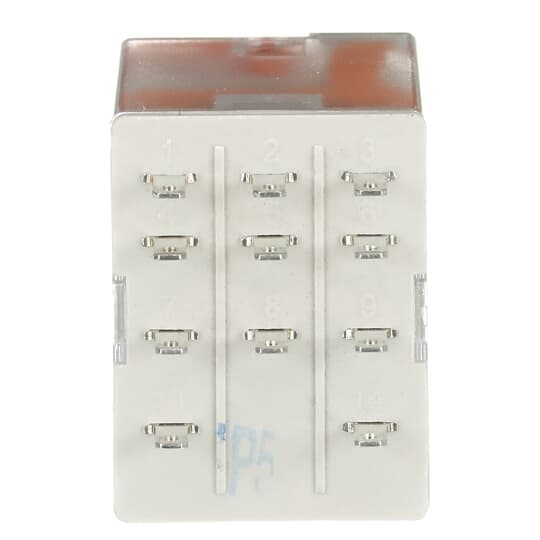

ABB 1SVR405612R2100 Interface Relay
Part Number # 1SVR405612R2100
SKU # 2411626
ABB 1SVR405612R2100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405612R2100 |
| SKU #: | 2411626 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 120 V AC, 120 VAC |
| Contact Form: | 3CO 3 Form C SPDT, 3CO/SPDT |
| Contact Rating: | 250 V DC, 250 VDC |
| Dimensions: | 27.5 mm H x 21.2 mm W x 35.6 mm D |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55 deg C |
| Type: | Pluggable Miniature |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497490 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR405612R2100 Interface Relay
Brand: ABB
Part Number: 1SVR405612R2100
ABB Interface Relay, Miniature Pluggable, Series: CR-M, 1.6 VA Power, 50/60 Hz Frequency, 120 VAC Coil, 3CO/SPDT Contact Form, 250 V, 10 A Contact, LED Display, 27.5 mm L x 21.2 mm W x 35.6 mm H Dimensions
Additional Description: ABB -1SVR405612R2100 (N) CR-M120AC3L PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Plugin control relay with 120 VAC rated control supply voltage, SPDT (3 c/o) contacts, contacts, without LED indicator and 250 V, 10 A contact rating
1SVR405612R2100 Application
For used with PLC, microcontrollers, fieldbus controllers and PC to control power loads1SVR405612R2100 Item Features
- LED indication
- Reverse polarity prediction/free wheeling diode
- 27 mm width on socket
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- RC elements
- For applications where low current control voltage is used to switch higher current or voltage loads
- Logical or standard sockets
- Overvoltage prediction
- Cadmium free contact material
- With or without integrated LED
1SVR405612R2100 Standards
CCC_2014010303720193 CCC Certificate|CSA_2735700 CSA Certificate|cUR_E244330 cUR Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|RMRS_12.04008.250 RMRS Certificate|VDE_40040327 VDE Certificate|1SVD981001-4400 RoHS Information|RoHS 2011/65/EU|UL Listed|cUL/UL Recognized|CSA Certified|EAC ApprovedSKU #2411626Part Number #1SVR405612R2100UNSPSC39122331UPC04013614497490
Image provided may only be a representation of final product and may include optional equipment
