Part Number # 1SVR405612R7000
SKU # 2327778
Image Disclaimers Message
1SVR405612R7000

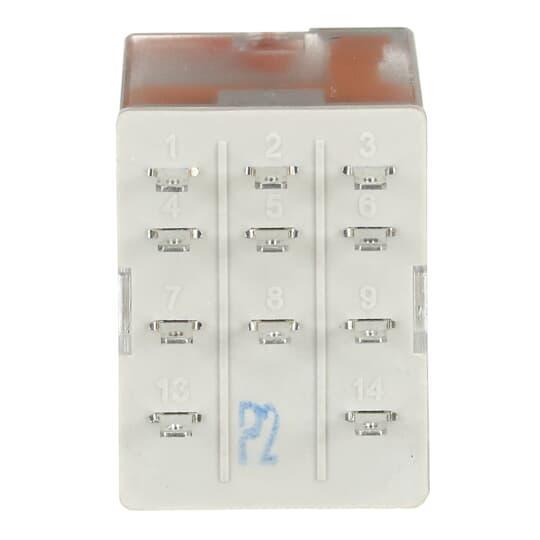

ABB 1SVR405612R7000 Pluggable Interface Relay
Part Number # 1SVR405612R7000
SKU # 2327778
$10.91 / Each
Typical price:$18.59 / Each
ABB 1SVR405612R7000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405612R7000 |
| SKU #: | 2327778 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Form: | 3CO 3 Form C SPDT, 3CO SPDT, 3CO/SPDT |
| Contact Rating: | 10 A at 250 V, 250 V AC, 250 VAC |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H, 35.6 mm H x 21.2 mm W x 27.5 mm D |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C, -40 to 70 deg C |
| Type: | Pluggable |
| Country of origin: | LT |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497612 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.91 / Each
Typical price:$18.59 / Each
Quantity:
- ABB, 1SVR405612R7000, Interface Relay, Pluggable, Series: CR-M, 10 A, 2500 VA Power, 50/60 Hz Frequency, 110 V AC Coil, 3CO 3 Form C SPDT Contact Form, 250 VAC Contact, 1 Pole, Socket Mounting, IP40 Enclosure, -40 to 70 deg C, 35.6 mm H x 21.2 mm W x 27.5 mm D Dimensions
1SVR405612R7000 Application
For low current control voltage is used to switch higher current or voltage loads1SVR405612R7000 Item Features
- Cadmium-free contact material
- Reverse polarity prediction/free wheeling diode
- 27 mm width on socket
- RC elements
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Overvoltage prediction
- Suited for logical and standard sockets
- Without LED indicator
1SVR405612R7000 Standards
CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR Listed|CCC Certified|CSA File No 2735700|cUL File No E244330 Recognized|CE Certified|EAC Certified|RMRS Certified|UR File No E244330|VDE File No 40040327|RoHS CompliantSKU #2327778Part Number #1SVR405612R7000UNSPSC39122331UPC04013614497612
