Part Number # 1SVR405612R8200
SKU # 2276422

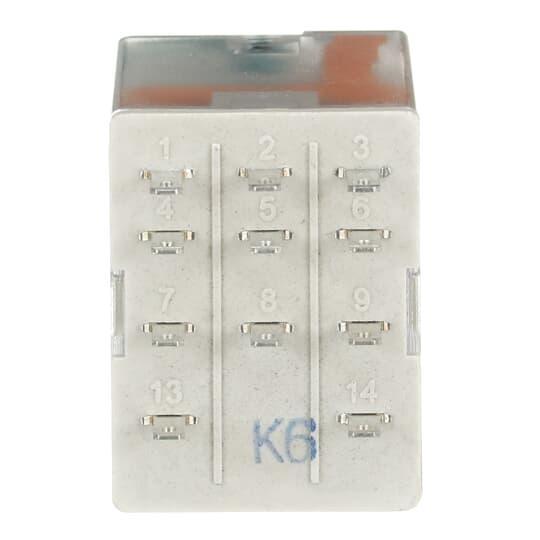

Image provided may only be a representation of
final product and may include optional equipment
1SVR405612R8200
ABB 1SVR405612R8200 Pluggable Interface Relay
Part Number # 1SVR405612R8200
SKU # 2276422
ABB 1SVR405612R8200 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405612R8200 |
| SKU #: | 2276422 |
| Coil Voltage: | 125, 125 V DC, 125 VDC |
| Contact Form: | 3CO 3 Form C SPDT, 3CO SPDT, 3CO/SPDT |
| Contact Rating: | 10 A at 250 V |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H |
| Enclosure Type: | IP40 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Miniature Pluggable |
| Country of origin: | LT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497650 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR405612R8200 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405612R8200
ABB Pluggable Interface Relay, Series: CR-M, 125 VDC Coil, 3CO/SPDT Contact Form, 10 A at 250 V Contact, IP40 Enclosure, -40 to 70 deg C, 21.2 mm W x 27.5 mm D x 35.6 mm H Dimensions
Additional Description: ABB -1SVR405612R8200 (N) CR-M125DC3 PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CR-M125DC3 pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 125 V DC rated control supply voltage and has 3 c/o (SPDT) output contacts rated at 250 V / 10 A. The relay has an integrated blue test button for manual actuation and locking of the output contacts. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
1SVR405612R8200 Item Features
- Cadmium-free contact material
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- 27 in W on socket
- Without LED
- Suited for logical and standard sockets
1SVR405612R8200 Standards
BAA Compliant|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|UR ListedSKU #2276422Part Number #1SVR405612R8200UNSPSC39122331UPC04013614497650
