Part Number # 1SVR405613R0000
SKU # 2233110
1SVR405613R0000

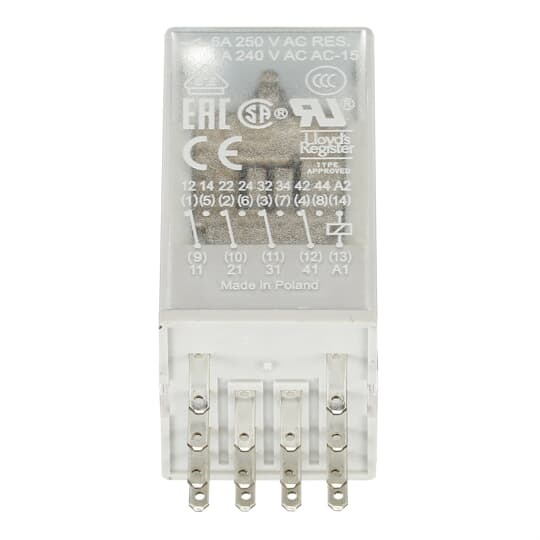

ABB 1SVR405613R0000 Pluggable Interface Relay
Part Number # 1SVR405613R0000
SKU # 2233110
$10.91 / Each
Typical price:$18.59 / Each
ABB 1SVR405613R0000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405613R0000 |
| SKU #: | 2233110 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Form: | 4CO 4 Form C SPDT, 4CO-SPDT |
| Contact Rating: | 6 A at 250 V |
| Dimensions: | 0.83 in W x 1.4 in D x 1.08 in H |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C |
| Type: | Pluggable |
| Country of origin: | LT |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.91 / Each
Typical price:$18.59 / Each
Quantity:
ABB 1SVR405613R0000 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405613R0000
ABB Pluggable Interface Relay, Series: CR-M, 50/60 Hz, 24 VAC Coil, 4CO-SPDT, 6 A at 250 V Contact, IP40 Enclosure, -40 to 55 deg C, 0.83 in W x 1.4 in D x 1.08 in H
Additional Description: ABB -1SVR405613R0000 (N) CR-M024AC4 PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 24 VAC pluggable interface relay with 4 c/o (SPDT) without LED outputs and 250 V, 6A contact rating
1SVR405613R0000 Application
For use to link the electronic controlling PLC, PC or field bus system to the sensor/actuator level1SVR405613R0000 Item Features
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- Amplification of weak control signals, electrical isolation of control and load circuits, and signal multiplying
- Overload-proof against short-time variations like current or voltage peaks
- Without LED
1SVR405613R0000 Standards
UL Listed|BAA Compliant|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|LR Certified|RMRS Certified|VDE Certified|UR Listed|UL ListedSKU #2233110Part Number #1SVR405613R0000UNSPSC39122331UPC04013614497698
Image provided may only be a representation of final product and may include optional equipment
