Part Number # 1SVR405613R1000
SKU # 2219613
Image Disclaimers Message
Brand: ABB
1SVR405613R1000

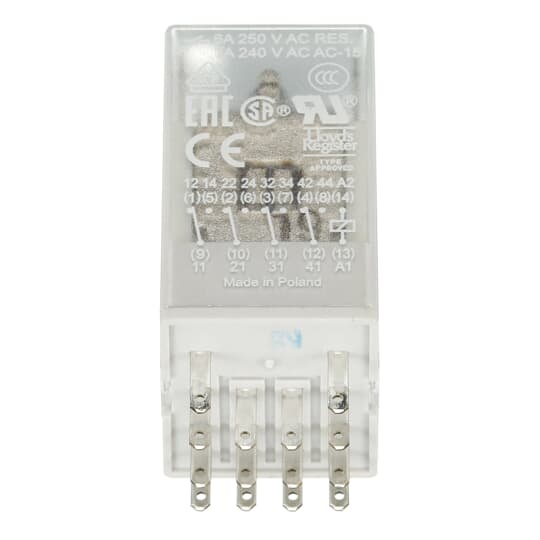

ABB 1SVR405613R1000 Pluggable Interface Relay
Part Number # 1SVR405613R1000
SKU # 2219613
$104.00 / 10Each
Typical price:$177.30 / Each
ABB 1SVR405613R1000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405613R1000 |
| SKU #: | 2219613 |
| Coil Voltage: | 24, 24 VDC |
| Contact Form: | 4CO-SPDT |
| Contact Rating: | 6 A at 250 V |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H |
| Enclosure Type: | IP40 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| UNSPSC: | 39122331 |
| UPC: | 04013614497711 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$104.00 / 10Each
Typical price:$177.30 / Each
Quantity:
ABB 1SVR405613R1000 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405613R1000
ABB Pluggable Interface Relay, Series: CR-M, 24 VDC Coil, 4CO-SPDT, 6 A at 250 V Contact, IP40 Enclosure, -40 to 70 deg C, 21.2 mm W x 27.5 mm D x 35.6 mm H
Additional Description: ABB -1SVR405613R1000 CR-M024DC4 PLUGGABLE RELAY CR-M024DC4
Catalog Description: Plugin control relay with 24 VDC rated control supply voltage, SPDT (4 c/o) contacts, contacts, without LED indicator and 250 V, 6 A contact rating
1SVR405613R1000 Item Features
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- Suited for logical and standard sockets
- 27 in W on socket
- Interface relays link the electronic controlling, e.g. PLC, PC or filed bus system to the sensor/actuator level
- General purpose relay
- Without LED
SKU #2219613Part Number #1SVR405613R1000UNSPSC39122331UPC04013614497711
