Part Number # 1SVR405613R1100
SKU # 2181416
Image Disclaimers Message
Brand: ABB
1SVR405613R1100

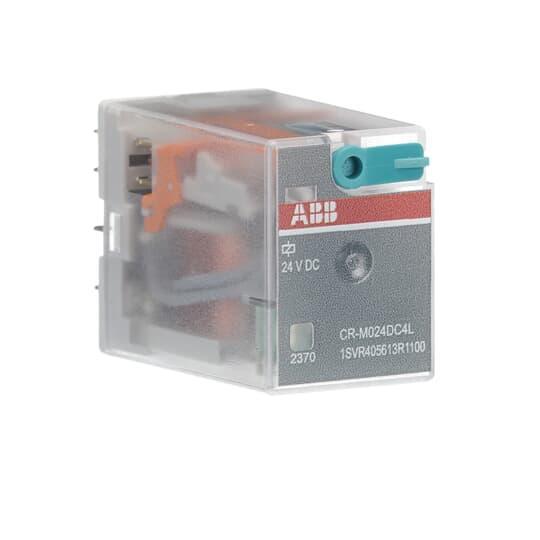

ABB 1SVR405613R1100 Pluggable Interface Relay
Part Number # 1SVR405613R1100
SKU # 2181416
$123.30 / 10Each
Typical price:$210.20 / Each
ABB 1SVR405613R1100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405613R1100 |
| SKU #: | 2181416 |
| Amperage Rating: | 6, 6 A |
| Coil Voltage: | 24, 24 VDC |
| Contact Form: | 4CO 4 Form C SPDT, 4CO-SPDT |
| Contact Rating: | 250, 250 VDC, 6 A at 250 V |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H, 27.5 mm H x 21.2 mm W x 35.6 mm D |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Pluggable Miniature |
| Country of origin: | LT |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497728 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$123.30 / 10Each
Typical price:$210.20 / Each
Quantity:
ABB 1SVR405613R1100 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405613R1100
ABB Interface Relay, Pluggable Miniature, Series: CR-M, 6 A, 1500 W Power, 24 VDC Coil, 4CO-SPDT Contact Form, 250 VDC Contact, Socket Mounting, LED Display, IP40 Enclosure, -40 to 70 deg C, 27.5 mm H x 21.2 mm W x 35.6 mm D Dimensions
Additional Description: ABB -1SVR405613R1100 CR-M024DC4L PLUGGABLE RELAY CR-M024DC4L
Catalog Description: Plugin control relay with 24 VDC rated control supply voltage, SPDT (4 c/o) contacts, contacts, with LED indicator and 250 V, 6 A contact rating
1SVR405613R1100 Item Features
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- Suited for logical and standard sockets
- Interface relays link the electronic controlling, e.g. PLC, PC or filed bus system to the sensor/actuator level
- General purpose relay
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- With or without integrated LED
- Logical or standard sockets
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- LED indication
- RC elements
- Overvoltage prediction
- For applications where low current control voltage is used to switch higher current or voltage loads
1SVR405613R1100 Standards
CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR ListedSKU #2181416Part Number #1SVR405613R1100UNSPSC39122331UPC04013614497728
