Part Number # 1SVR405613R7000
SKU # 2214847
Image Disclaimers Message
1SVR405613R7000

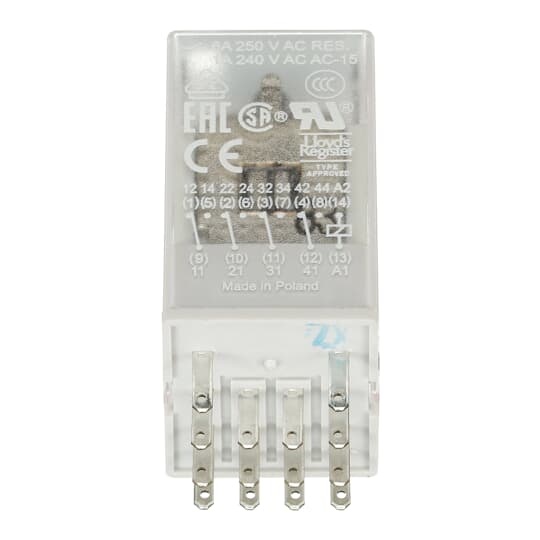

ABB 1SVR405613R7000 Pluggable Interface Relay
Part Number # 1SVR405613R7000
SKU # 2214847
$11.24 / Each
Typical price:$19.16 / Each
ABB 1SVR405613R7000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405613R7000 |
| SKU #: | 2214847 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Form: | 4CO 4 Form C SPDT, 4CO-SPDT |
| Contact Rating: | 250 V DC, 250 VDC, 6 A at 250 V |
| Dimensions: | 0.83 in W x 1.4 in D x 1.08 in H, 27.5 mm H x 21.2 mm W x 35.6 mm D |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C |
| Type: | Pluggable Miniature |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497858 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.24 / Each
Typical price:$19.16 / Each
Quantity:
- ABB, 1SVR405613R7000, Interface Relay, Pluggable Miniature, Series: CR-M, 6 A, 1500 W Power, 50/60 Hz Frequency, 110 V AC Coil, 4CO 4 Form C SPDT Contact Form, 250 VDC Contact, Socket Mounting, IP40 Enclosure, -40 to 55 deg C, 27.5 mm H x 21.2 mm W x 35.6 mm D Dimensions
1SVR405613R7000 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405613R7000 Item Features
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- With or without integrated LED
- Logical or standard sockets
- Cadmium free contact material
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- LED indication
- RC elements
- Overvoltage prediction
- For applications where low current control voltage is used to switch higher current or voltage loads
- Standard miniature relays with mechanical status indication
- Suited for logical and standard sockets
- Without LED
1SVR405613R7000 Standards
CCC_2014010303720193 CCC Certificate|CSA_2735700 CSA Certificate|cUR_E244330 cUR Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|RMRS_12.04008.250 RMRS Certificate|UR_E244330 UR Certificate|VDE_40040327 VDE Certificate|1SVD981001-4400 RoHS InformationSKU #2214847Part Number #1SVR405613R7000UNSPSC39122331UPC04013614497858
