1SVR405614R1100

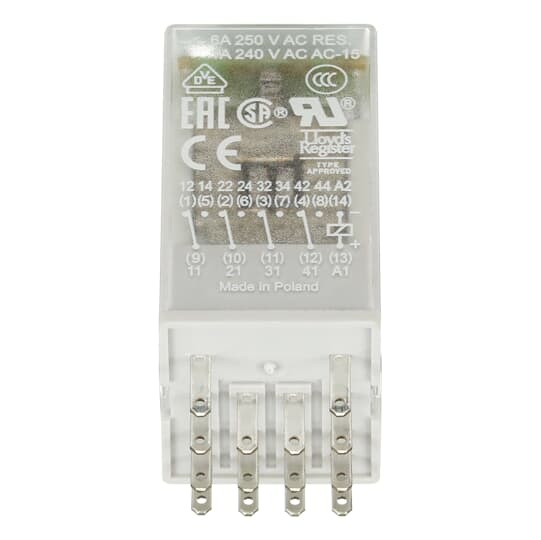

ABB 1SVR405614R1100 Pluggable Interface Relay
Part Number # 1SVR405614R1100
SKU # 2318854
ABB 1SVR405614R1100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405614R1100 |
| SKU #: | 2318854 |
| Coil Voltage: | 24, 24 VDC |
| Contact Form: | 4CO-SPDT |
| Contact Rating: | 6 A at 250 V |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| UNSPSC: | 39122331 |
| UPC: | 04013614497933 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR405614R1100 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405614R1100
ABB Pluggable Interface Relay, Series: CR-M, 24 VDC Coil, 4CO-SPDT, 6 A at 250 V Contact, LED, IP40 Enclosure, -40 to 70 deg C, 21.2 mm W x 27.5 mm D x 35.6 mm H
Additional Description: ABB -1SVR405614R1100 (N) CR-M024DC4LD PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CR-M024DC4LD pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 24 V DC rated control supply voltage and has 4 c/o (SPDT) output contacts rated at 250 V / 6 A. The relay has an integrated blue test button for manual actuation and locking of the output contacts as well as an integrated LED and diode. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
1SVR405614R1100 Item Features
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- Suited for logical and standard sockets
- 27 in W on socket
