Part Number # 1SVR405618R1100
SKU # 2217160
1SVR405618R1100

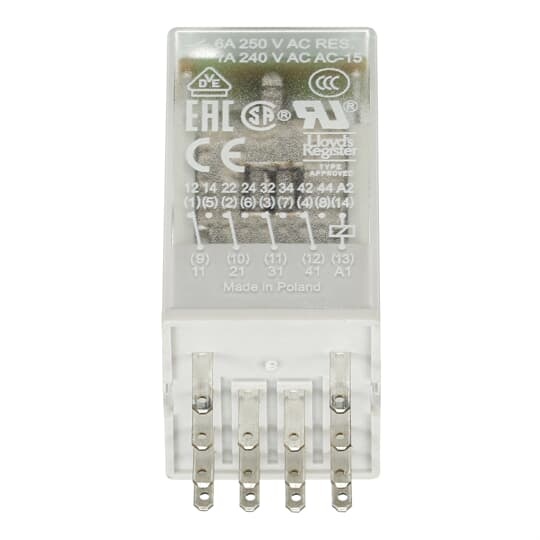

ABB 1SVR405618R1100 Pluggable Interface Relay
Part Number # 1SVR405618R1100
SKU # 2217160
ABB 1SVR405618R1100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405618R1100 |
| SKU #: | 2217160 |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 4CO 4 Form C SPDT, 4CO-SPDT |
| Contact Rating: | 250 V, 6 A, 6 A at 250 V |
| Dimensions: | 21.2 mm W x 27.5 mm D x 35.6 mm H, 27.5 mm L x 21.2 mm W x 35.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Miniature Pluggable |
| Country of origin: | LT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497971 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR405618R1100 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405618R1100
ABB Pluggable Interface Relay, Series: CR-M, 24 VDC Coil, 4CO-SPDT, 6 A at 250 V Contact, LED, IP40 Enclosure, -40 to 70 deg C, 21.2 mm W x 27.5 mm D x 35.6 mm H
Additional Description: ABB -1SVR405618R1100 (N) CR-M024DC4LG PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CR-M024DC4LG pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 24 V DC rated control supply voltage and has a 4 c/o (SPDT) gold-plated output with contacts rated at 250 V / 6 A. The relay has an integrated blue test button for manual actuation and locking of the output contacts and an integrated LED. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories
1SVR405618R1100 Item Features
- Cadmium-free contact material
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- 27 in W on socket
- Suited for logical and standard sockets
1SVR405618R1100 Standards
BAA Compliant|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|LR Certified|RMRS Certified|VDE Certified|UR ListedSKU #2217160Part Number #1SVR405618R1100UNSPSC39122331UPC04013614497971
Image provided may only be a representation of final product and may include optional equipment
