Part Number # 1SVR405618R2100
SKU # 2217161
Image Disclaimers Message
1SVR405618R2100

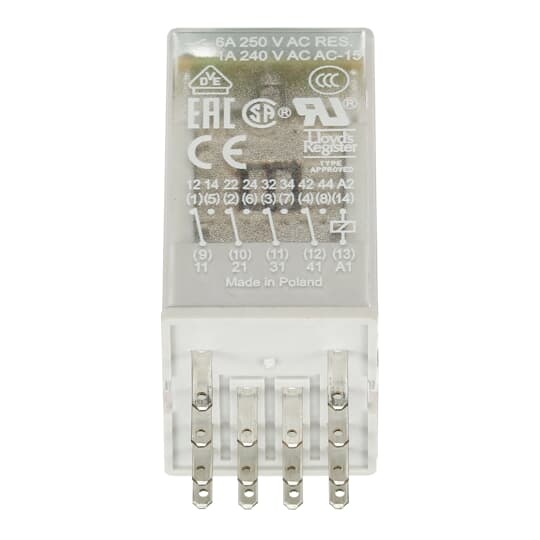

ABB 1SVR405618R2100 Pluggable Interface Relay
Part Number # 1SVR405618R2100
SKU # 2217161
$20.69 / Each
Typical price:$35.27 / Each
ABB 1SVR405618R2100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405618R2100 |
| SKU #: | 2217161 |
| Coil Voltage: | 120, 120 VAC |
| Contact Form: | 4CO 4 Form C SPDT, 4CO-SPDT |
| Contact Rating: | 250 V, 6 A, 6 A at 250 V |
| Dimensions: | 0.83 in W x 1.4 in D x 1.08 in H, 27.5 mm L x 21.2 mm W x 35.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CR-M |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C |
| Type: | Miniature Pluggable |
| Country of origin: | LT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614497995 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.69 / Each
Typical price:$35.27 / Each
Quantity:
- ABB, 1SVR405618R2100, Interface Relay With LED and Gold Contacts, Miniature Pluggable, Series: CR-M, 1.6 VA Power, 50/60 Hz Frequency, 120 VAC Coil, 4CO 4 Form C SPDT Contact Form, 250 V, 6 A Contact, LED Display, IP40 Enclosure, -40 to 55 deg C, 27.5 mm L x 21.2 mm W x 35.6 mm H Dimensions
1SVR405618R2100 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405618R2100 Item Features
- Cadmium-free contact material
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- 27 in W on socket
- Suited for logical and standard sockets
1SVR405618R2100 Standards
BAA Compliant|CE Certified|CCC Certified|cUR Listed|CSA Certified|EAC Certified|LR Certified|RMRS Certified|VDE Certified|UR Listed|UL ListedSKU #2217161Part Number #1SVR405618R2100UNSPSC39122331UPC04013614497995
