Part Number # 1SVR405621R2000
SKU # 2223587
Image Disclaimers Message
1SVR405621R2000

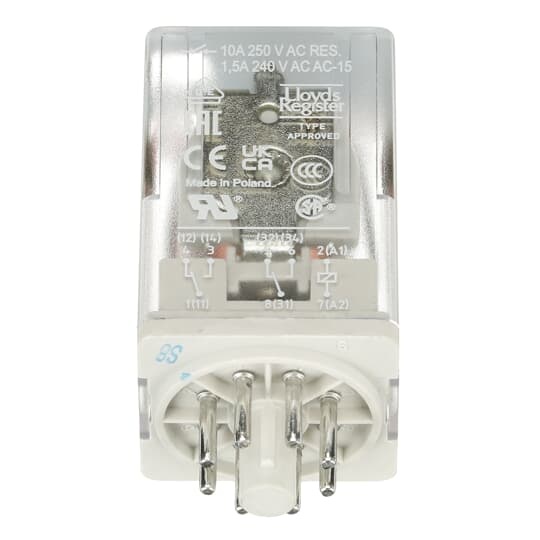

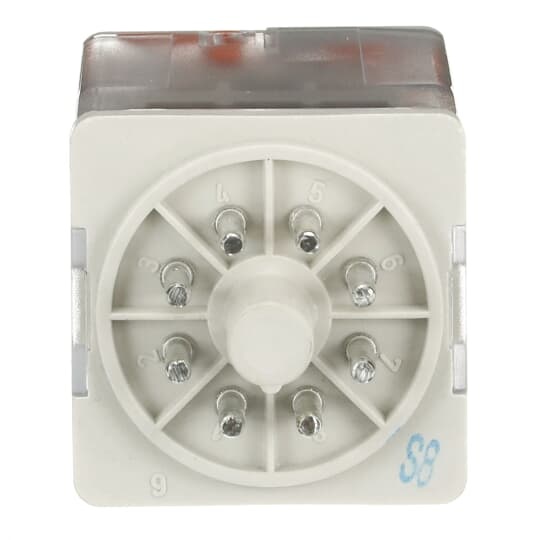

ABB 1SVR405621R2000 Pluggable Interface Relay
Part Number # 1SVR405621R2000
SKU # 2223587
$15.18 / Each
Typical price:$25.86 / Each
ABB 1SVR405621R2000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405621R2000 |
| SKU #: | 2223587 |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Form: | 2CO 2 Form C SPDT, 2CO SPDT, 2CO-SPDT |
| Contact Rating: | 10 A at 250 V, 250 V, 10 A |
| Dimensions: | 35 mm L x 35 mm W x 54.4 mm H, 35 mm W x 54.4 mm D x 35 mm H |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CR-U |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C |
| Type: | Pluggable Universal |
| Country of origin: | LT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498398 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.18 / Each
Typical price:$25.86 / Each
Quantity:
- ABB, 1SVR405621R2000, Interface Relay, Pluggable Universal, Series: CR-U, 2.5/2.8 VA Power, 50/60 Hz Frequency, 120 V AC Coil, 2CO 2 Form C SPDT Contact Form, 250 V, 10 A Contact, IP40 Enclosure, -40 to 55 deg C, 35 mm L x 35 mm W x 54.4 mm H Dimensions
1SVR405621R2000 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405621R2000 Item Features
- Cadmium-free contact material
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Standard universal relays with mechanical status indication
- 38 mm W socket
- Without LED
- General purpose relay
1SVR405621R2000 Standards
RoHS 2011/65/EU|UL Listed|cUL/UL Recognized|CSA Certified|CE Certified|EAC Approved|BAA Compliant|CE Certified|CCC Certified|CSA Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR ListedSKU #2223587Part Number #1SVR405621R2000UNSPSC39122331UPC04013614498398
