1SVR405621R2100

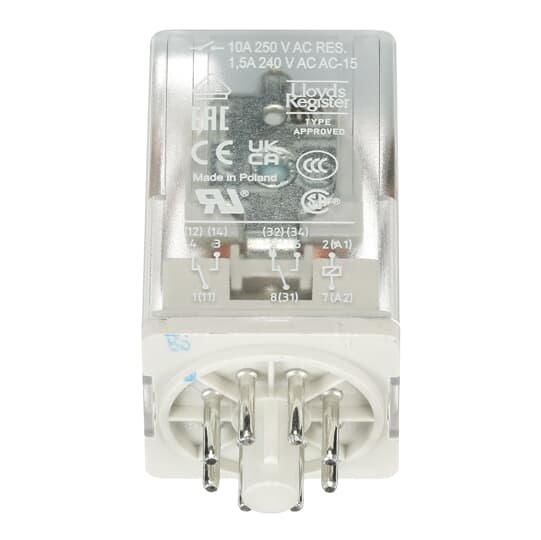

ABB 1SVR405621R2100 Universal Interface Relay
Part Number # 1SVR405621R2100
SKU # 2223588
$17.09 / Each
Typical price:$29.14 / Each
ABB 1SVR405621R2100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405621R2100 |
| SKU #: | 2223588 |
| Amperage Rating: | 10, 5, 5 mA |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO DPDT, 2CO/DPDT |
| Contact Rating: | 10 A at 250 V AC, 10 A at 250 VAC |
| Dimensions: | 54.4 mm H x 35 mm W x 35 mm D |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Series: | CR, CR-U |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C, -40 to 70 |
| Terminal Type: | Cage Clamp/Fork/Screw |
| Type: | General Purpose, General Purpose Pluggable |
| Country of origin: | LT |
| Mounting type: | PCB, Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498404 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.09 / Each
Typical price:$29.14 / Each
Quantity:
- ABB, 1SVR405621R2100, Universal Interface Relay With LED Indicator, General Purpose Pluggable, Series: CR, 5 mA, 0.3 W Power, 50/60 Hz Frequency, 120 V AC Coil, 2CO 2 Form C DPDT Contact Form, 10 A at 250 VAC Contact, Socket Mounting, IP40 Enclosure, -40 to 55 deg C, 54.4 mm H x 35 mm W x 35 mm D Dimensions
1SVR405621R2100 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405621R2100 Item Features
- Standard miniature relays with mechanical status indication
- The relay has an integrated blue test button for manual actuation and locking of the output contacts
- Suited for logical and standard sockets
- Cadmium free contact
- Pluggable function modules - reverse polarity protection/free wheeling diode, LED indication, RC elements, overvoltage protection, time modules
1SVR405621R2100 Standards
RoHS Compliant|UL Listed|CE|CSA|GOST Certified|CE Marked|CSA Certified|GOST|RoHS CompliantSKU #2223588Part Number #1SVR405621R2100UNSPSC39122331UPC04013614498404
