Part Number # 1SVR405621R7000
SKU # 2214846

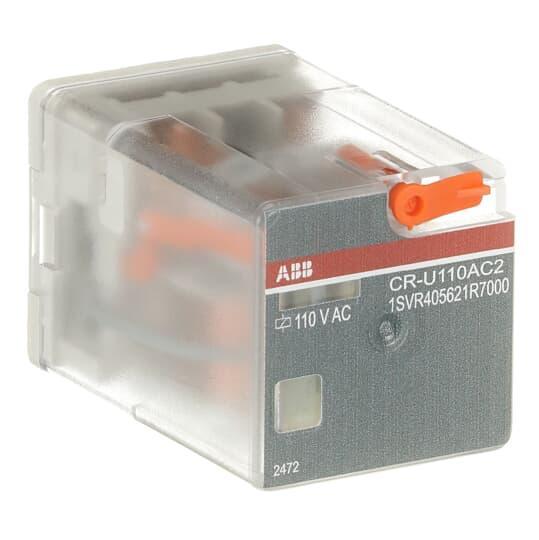

Image provided may only be a representation of
final product and may include optional equipment
1SVR405621R7000
ABB 1SVR405621R7000 Interface Relay
Part Number # 1SVR405621R7000
SKU # 2214846
ABB 1SVR405621R7000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405621R7000 |
| SKU #: | 2214846 |
| Amperage Rating: | 10 |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Form: | 2CO 2 Form C SPDT, 2CO SPDT, 2CO-SPDT, 2CO/SPDT |
| Contact Rating: | 10 A at 250 VAC, 250 V, 10 A |
| Dimensions: | 35 mm L x 35 mm W x 54.4 mm H, 54.4 mm H x 35 mm W x 35 mm D |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | CR-U |
| Temperature Rating (Degrees F): | -40 to 55 |
| Terminal Type: | Cage Clamp/Fork/Screw |
| Type: | Pluggable Universal |
| Country of origin: | LT |
| Mounting type: | PCB |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498497 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR405621R7000 Interface Relay
Brand: ABB
Part Number: 1SVR405621R7000
ABB Interface Relay, Pluggable Universal, Series: CR-U, 2.5/2.8 VA Power, 50/60 Hz Frequency, 110 VAC Coil, 2CO-SPDT Contact Form, 250 V, 10 A Contact, 35 mm L x 35 mm W x 54.4 mm H Dimensions
Additional Description: ABB -1SVR405621R7000 (N) CR-U110AC2 PLUGGABLE RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CR-U110AC2 pluggable interface relay is from the CR-U (universal) relay range. This relay operates with a 110 V AC rated control supply voltage and has 2 c/o (SPDT) output contacts rated at 250 V / 10 A. The relay has an integrated orange test button for manual actuation and locking of the output contacts. Standard sockets, pluggable function modules, holder and marker are available as accessories.
1SVR405621R7000 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405621R7000 Item Features
- Without LED
- The relay has an integrated orange test button for manual actuation and locking of the output contacts
1SVR405621R7000 Standards
UL Listed|cUL/UL Recognized|CSA Certified|CE Certified|EAC ApprovedSKU #2214846Part Number #1SVR405621R7000UNSPSC39122331UPC04013614498497
