Part Number # 1SVR405622R1100
SKU # 2232336
Image Disclaimers Message
Brand: ABB
1SVR405622R1100

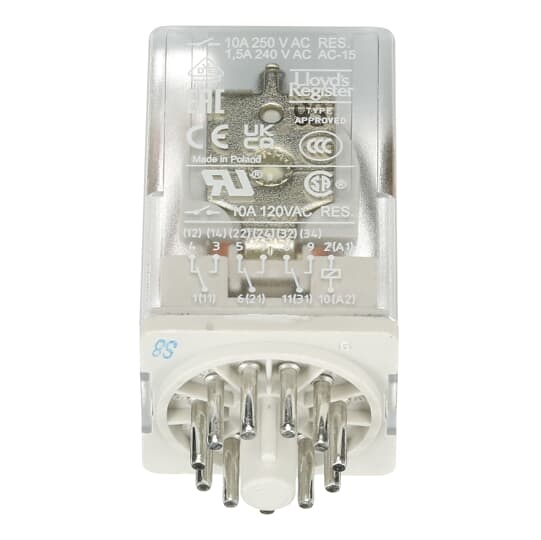

ABB 1SVR405622R1100 Pluggable Interface Relay
Part Number # 1SVR405622R1100
SKU # 2232336
$17.09 / Each
Typical price:$29.14 / Each
ABB 1SVR405622R1100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405622R1100 |
| SKU #: | 2232336 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 3CO 3 Form C SPDT, 3CO SPDT, 3CO/SPDT |
| Contact Rating: | 10 A at 250 V, 250, 250 VDC |
| Dimensions: | 35 mm H x 35 mm W x 54.4 mm D, 35 mm W x 54.4 mm D x 35 mm H |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Series: | CR-U |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Type: | Pluggable Universal |
| Country of origin: | LT |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498589 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.09 / Each
Typical price:$29.14 / Each
Quantity:
- ABB, 1SVR405622R1100, Relay, Pluggable Universal, Series: CR-U, 10 A, 2500 W Power, 24 V DC Coil, 3CO 3 Form C SPDT Contact Form, 10 A at 250 V Contact, Socket Mounting, LED Display, IP40 Enclosure, -40 to 70 deg C, 35 mm W x 54.4 mm D x 35 mm H Dimensions
1SVR405622R1100 Application
For applications where low current control voltage is used to switch higher current or voltage loads1SVR405622R1100 Item Features
- Standard universal relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- 38 mm W socket
- General purpose relay
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- Reverse polarity prediction/free wheeling diode
- RC elements
- Overvoltage prediction
- Multi-function time module
- For applications where low current control voltage is used to switch higher current or voltage loads
1SVR405622R1100 Standards
CE Certified|CCC Certified|CSA Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RoHS Compliant|VDE Certified|UR ListedSKU #2232336Part Number #1SVR405622R1100UNSPSC39122331UPC04013614498589
