Part Number # 1SVR405622R2000
SKU # 2327777
Image Disclaimers Message
Brand: ABB
1SVR405622R2000

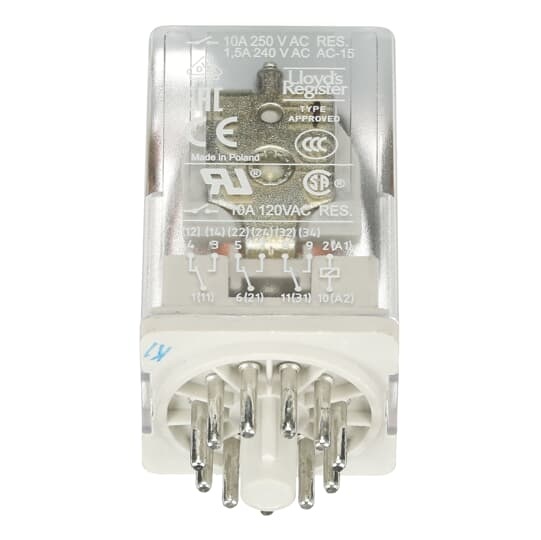

ABB 1SVR405622R2000 Pluggable Interface Relay
Part Number # 1SVR405622R2000
SKU # 2327777
$15.67 / Each
Typical price:$26.72 / Each
ABB 1SVR405622R2000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405622R2000 |
| SKU #: | 2327777 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 120, 120 VAC |
| Contact Form: | 3CO 3 Form C SPDT, 3CO SPDT, 3CO/SPDT |
| Contact Rating: | 10 A at 250 V, 250 VDC |
| Dimensions: | 1.38 in W x 2.14 in D x 1.38 in H, 35 mm H x 35 mm W x 54.4 mm D |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CR-U |
| Temperature Rating (Degrees F): | -40 to 55, -40 to 55 deg C |
| Type: | Pluggable Universal |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614498596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.67 / Each
Typical price:$26.72 / Each
Quantity:
ABB 1SVR405622R2000 Pluggable Interface Relay
Brand: ABB
Part Number: 1SVR405622R2000
ABB Interface Relay, Pluggable Universal, Series: CR-U, 10 A, 2500 W Power, 120 VAC Coil, 3CO/SPDT Contact Form, 250 VDC Contact, Socket Mounting, IP40 Enclosure, -40 to 55 deg C, 35 mm H x 35 mm W x 54.4 mm D Dimensions
Additional Description: ABB -1SVR405622R2000 CR-U120AC3 PLUGGABLE RELAY
Catalog Description: 120 VAC pluggable interface relay with 3 c/o without LED outputs and 250 V, 10A contact rating
1SVR405622R2000 Application
For link the electronic controlling PLC, PC or field bus system to the sensor/actuator level1SVR405622R2000 Item Features
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- Cadmium free contact material
- 38 mm width on socket
- Reverse polarity prediction/free wheeling diode
- RC elements
- Overvoltage prediction
- Multi-function time module
- Amplification of weak control signals, electrical isolation of control and load circuits, and signal multiplying
- Switching of AC or DC loads with different resistive, inductive and capacitive parts, switching voltages from a few mV up to 250 V
- Switching currents from a few mA up to 16 A
- Overload-proof against short-time variations like current or voltage peaks
- Without LED
1SVR405622R2000 Standards
CCC_2012010303554029 CCC Certificate|CSA_1587291 CSA Certificate|EAC_RU_C-PL.ME77.B.01873 EAC Certificate|LR_05_20002_E3 LR Certificate|RMRS_12.04008.250 RMRS Certificate|1SVD981001-4400 RoHS InformationSKU #2327777Part Number #1SVR405622R2000UNSPSC39122331UPC04013614498596
