- Amperage Rating: 7
- Dimensions: 82 mm L x 27 mm W x 61 mm H
- Enclosure Type: IP20
- Number of Poles: 3
- Series: CR-M
- Suitable For Use With: 3CO SPDT Plug-In Control CR-M Relay
- Temperature Rating (Degrees F): -40 to 70
- Terminal Type: Screw
- Voltage Rating: 250
- Mounting type: DIN Rail

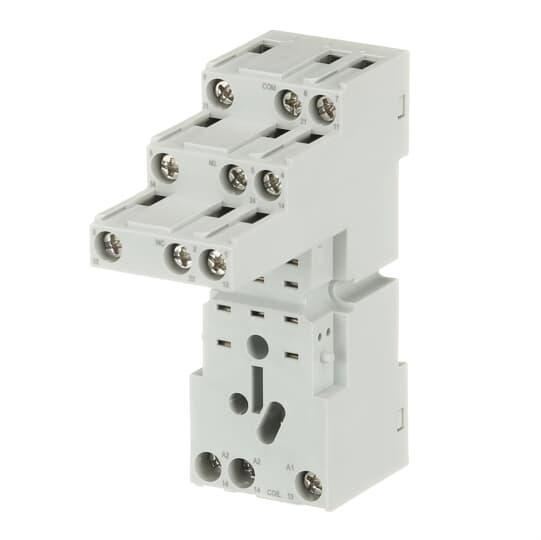

ABB 1SVR405651R2100 Logical Socket
ABB Logical Socket, Series: CR-M, 250 VAC/VDC, 7 A, 3 Poles, -40 to 70 deg C, For Use With: 3CO SPDT Plug-In Control CR-M Relay, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, 82 mm L x 27 mm W x 61 mm H Dimensions
Additional Description: ABB -1SVR405651R2100 LOGICAL SOCKET CR-M3LS
Catalog Description: Logical socket for 3PDT (3 c/o) Plugin control relays with screw type connection terminal
- Specifications
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, all contact connections (common contacts, n/o and n/c contacts) on the upper side of the socket
