Brand: ABB
1SVR405670R1100

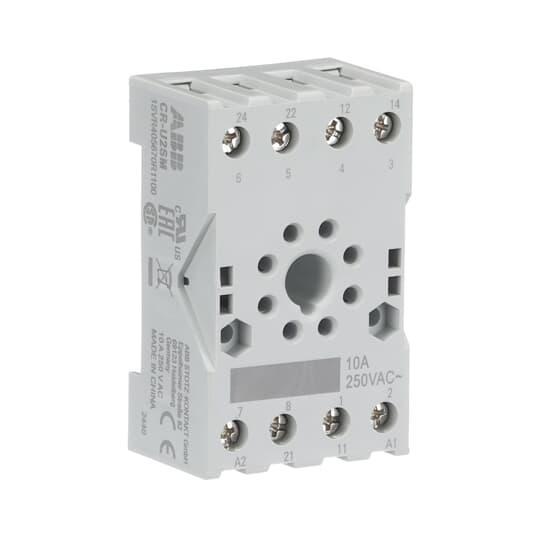

ABB 1SVR405670R1100 Small Socket
Part Number # 1SVR405670R1100
SKU # 2368844
$68.40 / 10Each
Typical price:$116.60 / Each
ABB 1SVR405670R1100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR405670R1100 |
| SKU #: | 2368844 |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 68.2 mm L x 38 mm W x 24.2 mm H |
| Enclosure Type: | IP20 |
| Number of Pins: | 8 |
| Number of Poles: | 2 |
| Series: | CR-U |
| Suitable For Use With: | DPDT Plug-In Control CR-U Relay |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Small |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122335 |
| UPC: | 04013614529306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$68.40 / 10Each
Typical price:$116.60 / Each
Quantity:
- ABB, 1SVR405670R1100, Socket, Small, Series: CR-U, 250 VAC, 10 A, 8 Pins, 2 Pole, -40 to 70 deg C, For Use With: DPDT Plug-In Control CR-U Relay, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, 68.2 mm L x 38 mm W x 24.2 mm H Dimensions
1SVR405670R1100 Item Features
- AgNi contact material
- Position of connection terminals: coil connection (A1-A2) on lower side of socket, contact connections (n/o and n/c contacts) on the lower and upper side of socket
- Connector for pluggable function modules: reverse polarity protection/free wheeling diode, LED indication, RC element, overvoltage protection, multifunction time module
1SVR405670R1100 Standards
cUL 508|CAN/CSA C22.2 File No 14|cULus Recognized|EAC Certified|RMRS Certified|CE Certified|RoHS 2011/65/EU Compliant|IEC/EN 61984SKU #2368844Part Number #1SVR405670R1100UNSPSC39122335UPC04013614529306
