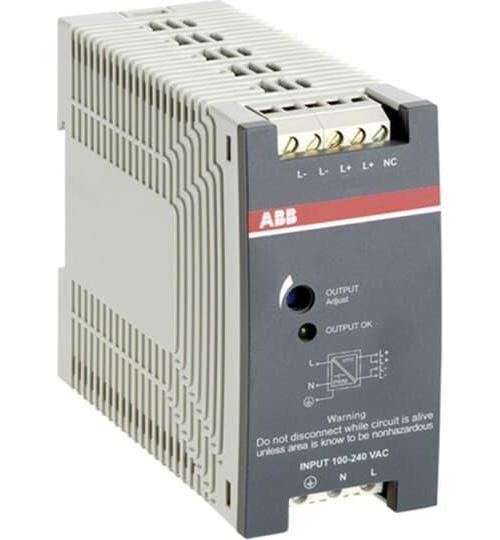

ABB 1SVR427032R0000 Power Supply

2134962 MFG #: 1SVR427032R0000
$66.64 / EA
Usually Ships within 5-8 Days
  • Amperage Rating: 2.5
  • Case Material: Plastic
  • Frequency Rating: 47 to 63
  • Input Voltage: 85 to 264 VAC/90 to 375 VDC
  • Power Rating: 60
  • Series: CP-E
  • Height: 3.54
  • Mounting type: DIN Rail
  • Output voltage: 24
  • Width: 1.59

ABB 1SVR427032R0000 Power Supply

ABB Power Supply, Series: CP-E, 85 to 264 VAC/90 to 375 VDC Input, 24 VDC Output, 60 W, 2.5 A, 47 to 63 Hz, DIN Rail Mount, Plastic Case, 1.59 in Width, 3.54 in Height

Additional Description: ABB -1SVR427032R0000 CP-E 24/2.5 POWER SUPPLY

Catalog Description: The CP-E 24/2.5 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 60 W, rated output current is 2.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A further feature is the signalling output (transistor) for output voltage OK. A redundancy unit is available as accessory.

  • Specifications
  • Typical efficiency of 89%
  • 1060 mA at 115 VAC 590 mA at 230 VAC input current
  • 69.2 W typical power consumption
  • 8.8 W typical power dissipation
  • 100% duty time
  • 20 A 115 VAC 40 A 230 VAC inrush current limiting
  • Power reserve up to 50%
  • For applications that require cost effective 24 VDC at 2.5 A power supply
  • Low power dissipation and low heating
  • Free convection cooling (no forced cooling with ventilators)
  • Open circuit, overload and short circuit stable
  • Integrated input fuse
  • LED's for status indication
  • Output voltage adjustable via front face rotary potentiometer output adjust
  • Ambient temperature range during operation -40 to 70 deg C
  • Signaling output DC OK (transistor) for output voltage OK
