Part Number # 1SVR427032R1000
SKU # 2137862
Image Disclaimers Message
1SVR427032R1000

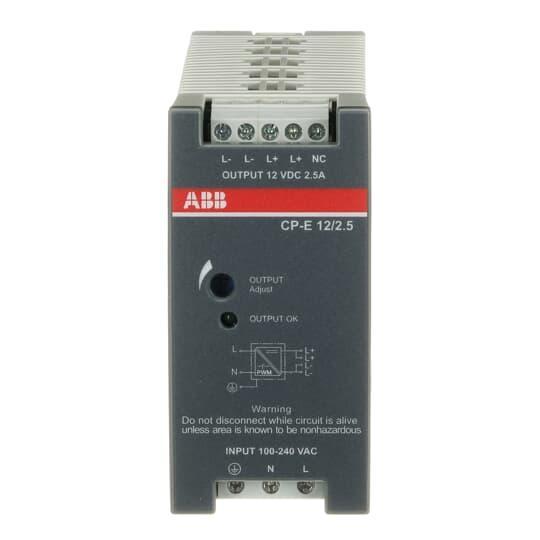

ABB 1SVR427032R1000 Power Supply
Part Number # 1SVR427032R1000
SKU # 2137862
$116.73 / Each
Typical price:$153.36 / Each
ABB 1SVR427032R1000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR427032R1000 |
| SKU #: | 2137862 |
| Amperage Rating: | 2.5, 2.5 A |
| Case Material: | Plastic |
| Frequency Rating: | 47/63, 47/63 Hz |
| Input Voltage: | 85 to 264 V AC/90 to 375 V DC, 85 to 264 VAC/90 to 375 VDC |
| Series: | CP-E |
| Type: | Switch Mode |
| Country of origin: | CN |
| Depth: | 4.49, 4.49 in |
| Height: | 3.54, 3.54 in |
| Mounting type: | DIN Rail |
| Output voltage: | 12, 12 V DC, 12 VDC |
| Width: | 1.59, 1.59 in |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04016779656900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$116.73 / Each
Typical price:$153.36 / Each
Quantity:
- ABB, 1SVR427032R1000, Power Supply, Switch Mode, Series: CP-E, 85 to 264 V AC/90 to 375 V DC Input, 12 VDC Output, 30 W Power, 2.5 A, 47/63 Hz Frequency, DIN Rail Mounting, Plastic Case, 1.59 in Width, 4.49 in Depth, 3.54 in Height
1SVR427032R1000 Application
Used in high fluctuating networks and battery powered plants1SVR427032R1000 Item Features
- Integrated input fuse
- Power reserve up to 50%
- Low power dissipation and low heating
- LEDs for status indication
- 100% duty time
- Output voltage adjustable via front face rotary potentiometer output adjust
- 560 mA at 115 VAC 330 mA at 230 VAC input current
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- For applications that require cost effective 12 VDC at 2.5 A power supply
- Typical efficiency of 84%
- Ambient temperature range during operation -40 to 70 deg C
- 35.9 W typical power consumption
1SVR427032R1000 Standards
IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508/60950/1310|CAN/CSA C22.2 No 107.1 1|CSA C22.2 No. 223|ANSI/ISA-12.12|CSA C22.2 No. 213|CSA C22.2 No.60950|EAC Approved|CCC Certified|CE Certified|RCM Certified|IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/60950/1310|cUL Listed|CAN/CSA C22.2 No. 213|223|107.1|60950|UL Recognized|CE CertifiedSKU #2137862Part Number #1SVR427032R1000UNSPSC39121004UPC04016779656900
